20Pcs Mini 360 3A DC-DC Power Step-Down Module Synchronous Rectification Step-Down 4.75V-23V to 1.0V-17V for RC in Kuwait 20Pcs Mini 360 3A DC-DC Power Step-Down Module Synchronous Rectification Step-Down 4.75V-23V to 1.0V-17V for RC in Kuwait 20Pcs Mini 360 3A DC-DC Power Step-Down Module Synchronous Rectification Step-Down 4.75V-23V to 1.0V-17V for RC in Kuwait

20Pcs Mini 360 3A DC-DC Power Step-Down Module Synchronous Rectification Step-Down 4.75V-23V to 1.0V-17V for RC

KWD 3
Brand
YFUSET
Weight
46 g
– 1 +

Special Features

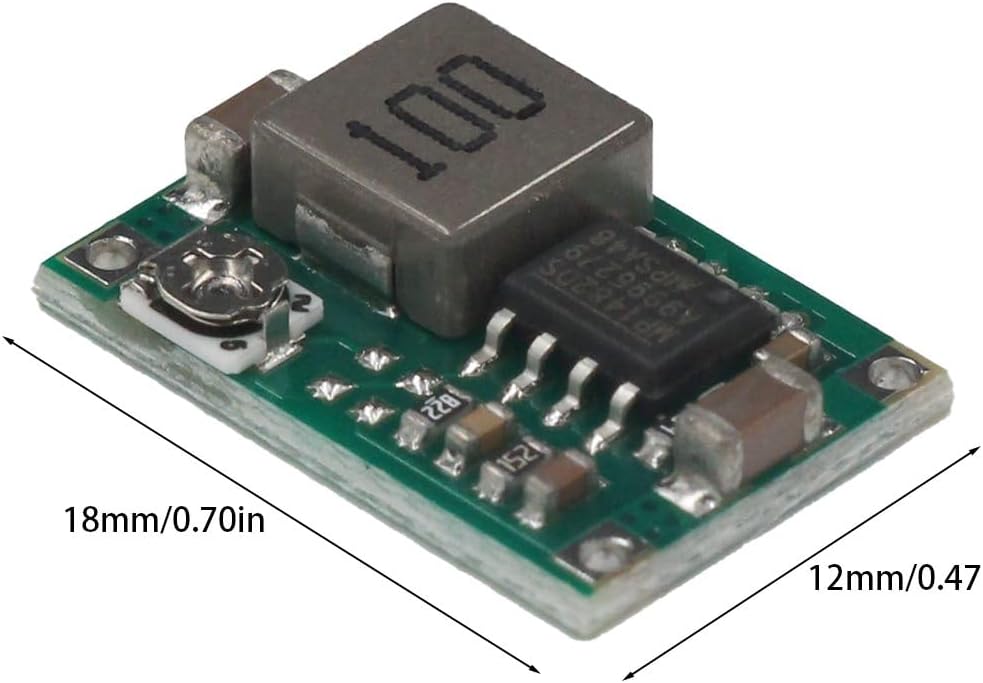

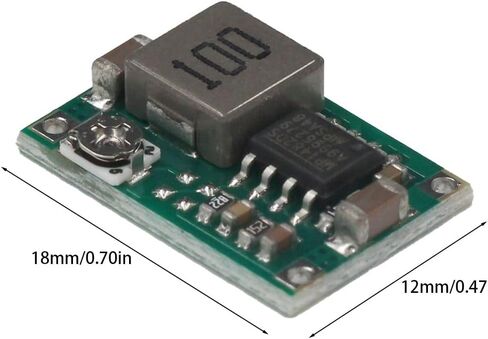

  • Ultra-Compact and Highly Efficient Design：The Mini360 module integrates a power sensor and synchronous rectifier control chip into a compact design, measuring just 17 mm x 11 mm x 3.9 mm (0.67 in x 0.43 in x 0.15 in). Despite its small size, it achieves a maximum efficiency of 96%, ensuring more energy-efficient power conversion
  • Wide Input Voltage Range & Adjustable Output：With an input voltage range of 4.75V-23V, the Mini360 module offers flexibility across a variety of power sources. The output voltage is adjustable between 1.0V-17V, with a peak output current of 3A and a continuous current of 1.8A. Simply rotate the potentiometer to decrease or increase the output voltage to suit your needs
  • Versatile Applications for Various Projects：Perfect for DIY projects, model aircraft, vehicle power supplies, mobile power supplies, and any scenario requiring efficient power step-down
  • Built-in Protection Features：The Mini360 module includes an intelligent voltage regulator chip, automatic 85°C power-off protection, and 12V 3A reverse polarity protection

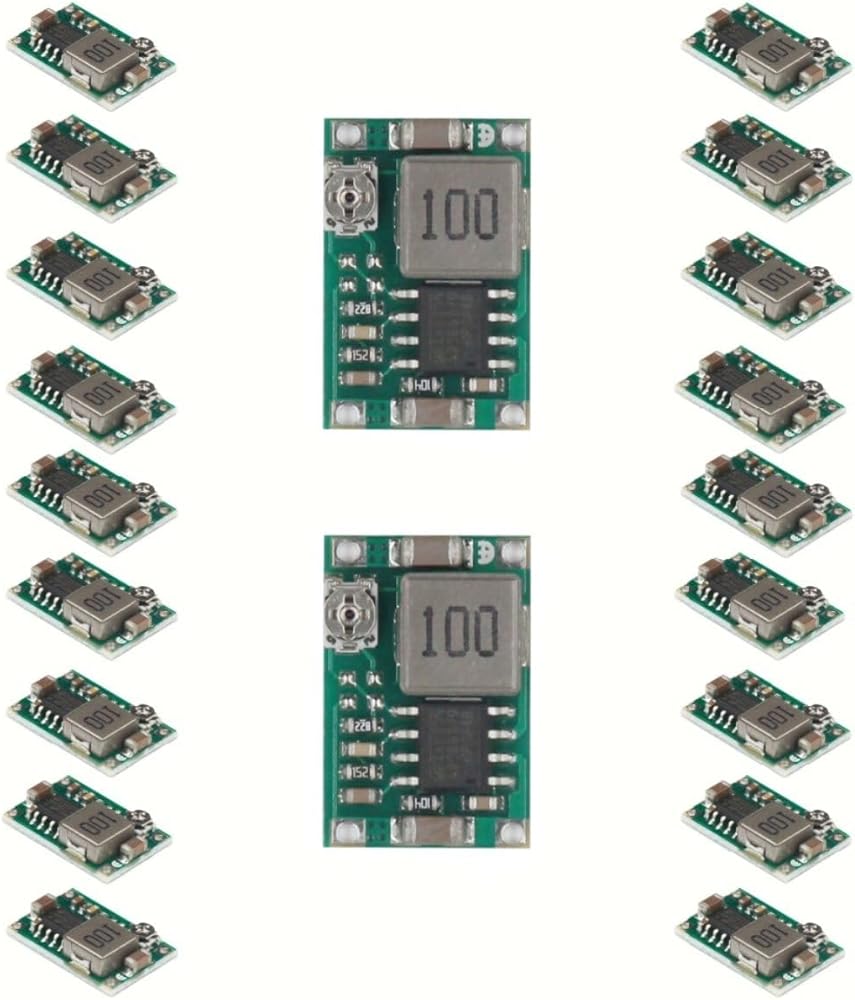

  • Large quantity and wide use：This set includes 20 pieces of the Mini360 ultra-compact DC-DC synchronous rectifier step-down modules, providing an excellent solution for bulk projects or multiple power supply applications；These non-isolated step-down modules ensure high efficiency and reliability across your various DIY projects.

Description

Name:Mini360 (Ultra-small DC-DC Synchronous Rectification Step-Down Module)
Module characteristics: non-isolated buck
Rectification mode: synchronous rectification
Input voltage: 4.75V-23V
Output voltage: 1.0V-17V
Current output: peak 3A, long time 1.8A
Transmission Efficiency: 96% (Max)
Switching frequency: 340KHz
Output ripple: 30mV (no load)
Load Regulation: ±0.5%
Voltage Regulation: ±2.5%
Operating temperature: -40 ℃ +85℃
Size: 17mm (L) × 11mm (W) × 3.9mm (H) (0.67in×0.43in×0.15in)
