Surf turtle 5 Sets 5A DC-099 5.5 x 2.1 mm DC Power Jack Socket,50V 5A 2.1mm x 5.5 mm Male and Female Panel Mount Connector Adapter with Dustproof Plug for MP3 Phone Audio Video CCTV in Kuwait

Surf turtle 5Pcs 5A DC-099 Power Jack Cord Socket Threaded Female Mount Connector Adapter with Pre-soldered Wires and Waterproof Cover Cap, 5.5 x 2.1 MM

KWD 3.500
Brand
Surf turtle
Weight
48 g
Length5 female heads
– 1 +

Special Features

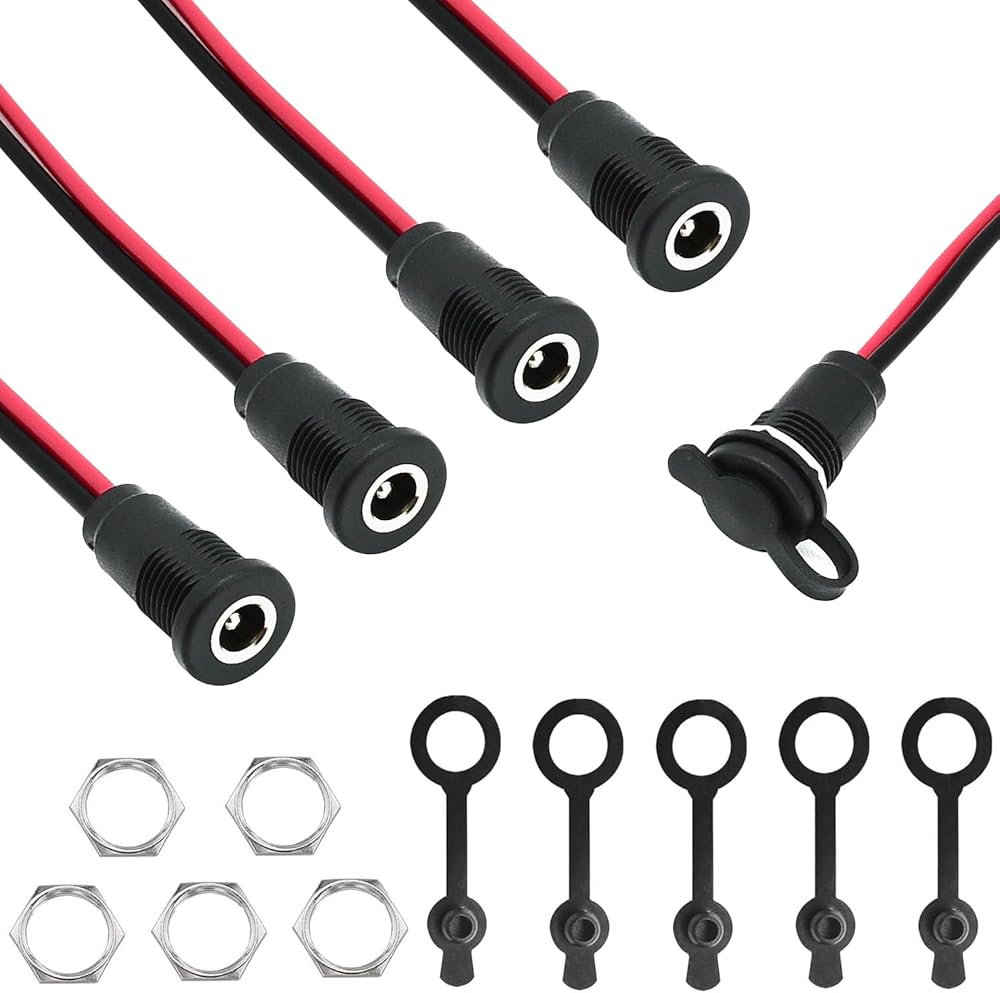

  • Package Contents: 5pcs DC power socket with cord 5.5x2.1 and 5pcs DC male plug 5.5x2.1. With 5 hex nuts and 5 waterproof and dustproof covers
  • Material: High-quality metal and high-quality rubber and high-quality plastic
  • DC female socket is copper pin, fast and stable transmission. Model: 5.5x2.1mm / 0.22x0.08 in. Mounting hole diameter: about 12mm / 0.47in. 20AWG copper wire length: 150 mm / 5.9 inches
  • Rated current: 5A. Rated voltage: 50V. Electric life: 5000 times. Waterproof grade is IP68
  • Widely used: suitable for DIY enthusiasts, this power socket is widely used in car audio, tape recorder, stereo, telephone, learning machine, video communication, household appliances, etc. Suitable for a variety of occasions: digital products, remote controls, communication products, household products, toys, computer products, fitness equipment, medical equipment, security monitors, audio-visual digital products and other fields

Description

Product name: DC022 black waterproof and dustproof plug copper needle high current waterproof belt power socket
DC male plug specifications:
Rated temperature: -20 - +90 degrees Celsius
Rated voltage: 300V
Connector polarity: inner positive + (red wire), outer negative - (through black wire)
Conductor specification: single 0.2mm (0.2 square)
JUE edge: PVC jacket
JUE edge material: environmentally friendly polyvinyl chloride (PVC)
Conductor material: TS/AS single oxygen-free pure copper
Single or stranded bare copper or tinned copper wire (tinned copper wire is 0.12mm-0.4mm)
Transmission characteristics: The tuning fork is buckled, the contact point is good, and there will be no bad contact!
Long service life, easy installation, excellent high temperature and low temperature resistance, excellent high pressure resistance, aging resistance, high temperature resistance, acid and alkali resistance, and long service life.

DC Specifications: 5.5x2.1mm/0.08x0.22 in
Aperture: 5.5mm/0.22 in
Pure copper needle core: 2.1mm/0.08in
Material: plastic, metal
Waterproof grade: IP68 grade
Wire: 1007-20AWG
Copper wire: 21 shares 0.12MM per share
Operating temperature range: -40/80(C)
Life: 5000 times
Rated current: 5A
Rated voltage: 50V
Product features: flame retardant, temperature resistance, fire resistance, moisture resistance, oxidation resistance.

Description: DC socket is a kind of power socket for circuit board installation, it is composed of shell, nylon base, center pin, internal shrapnel soldering feet and so on. Installation method: plug-in, patch, sink board
