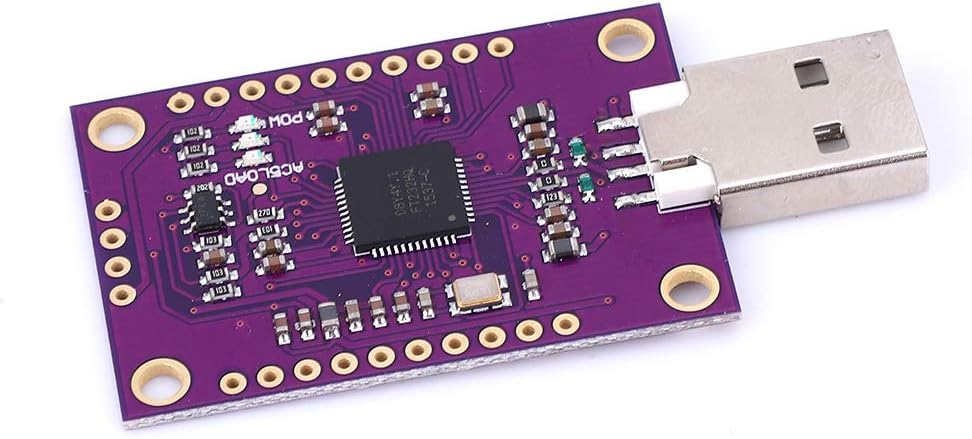

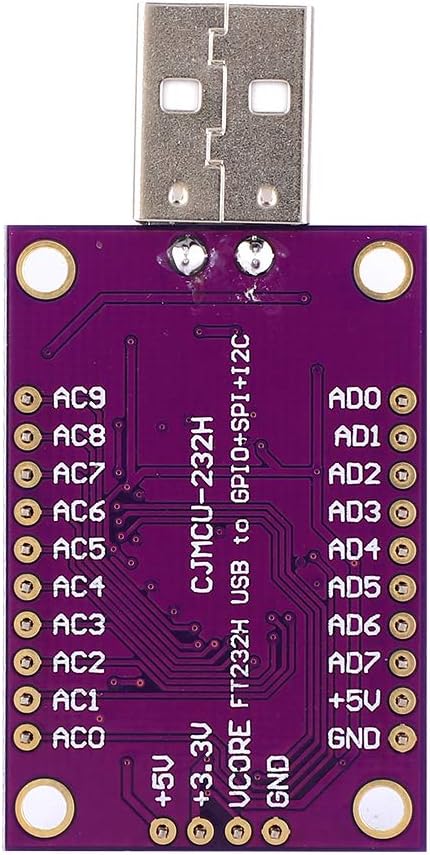

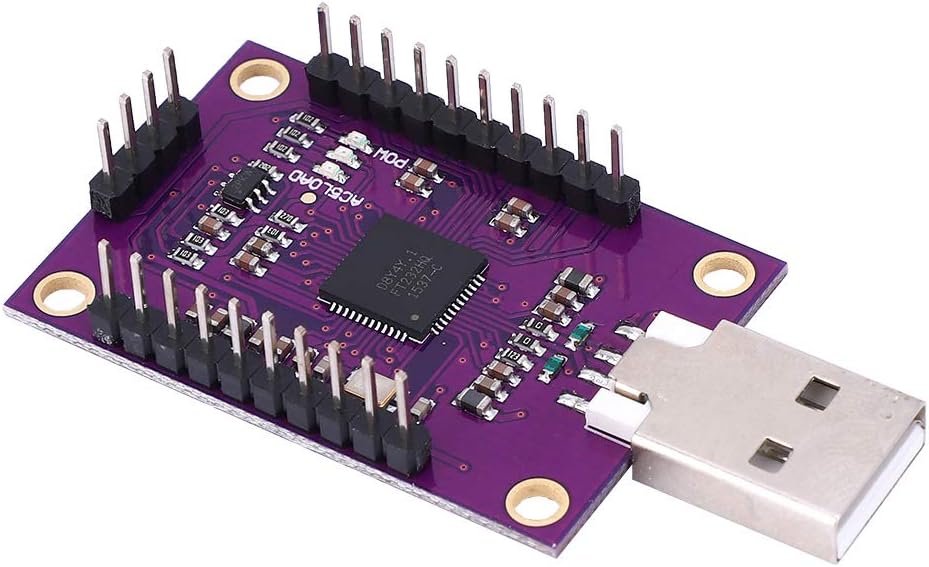

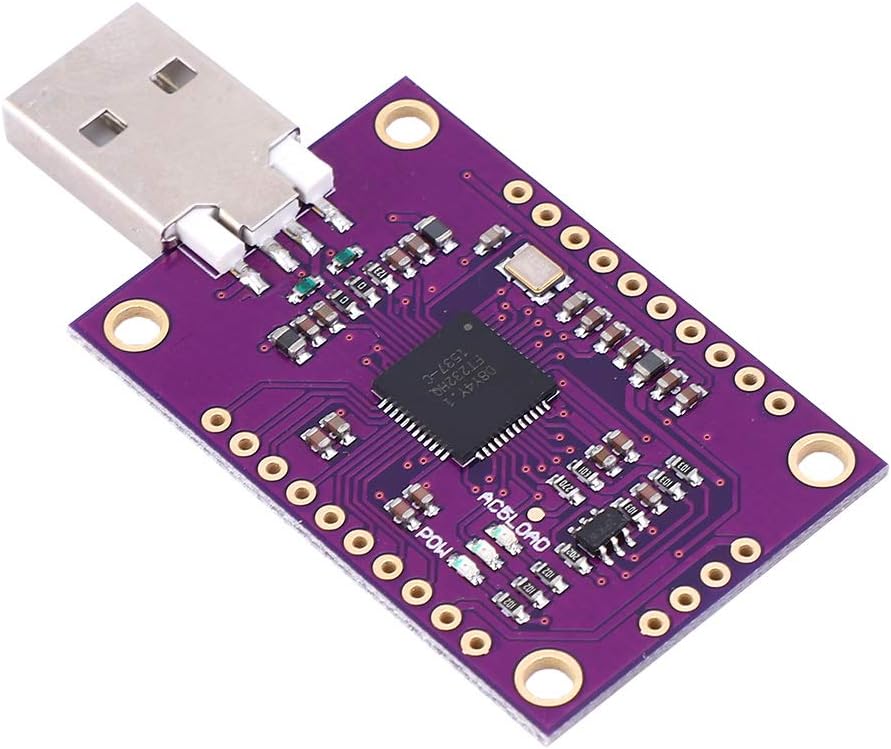

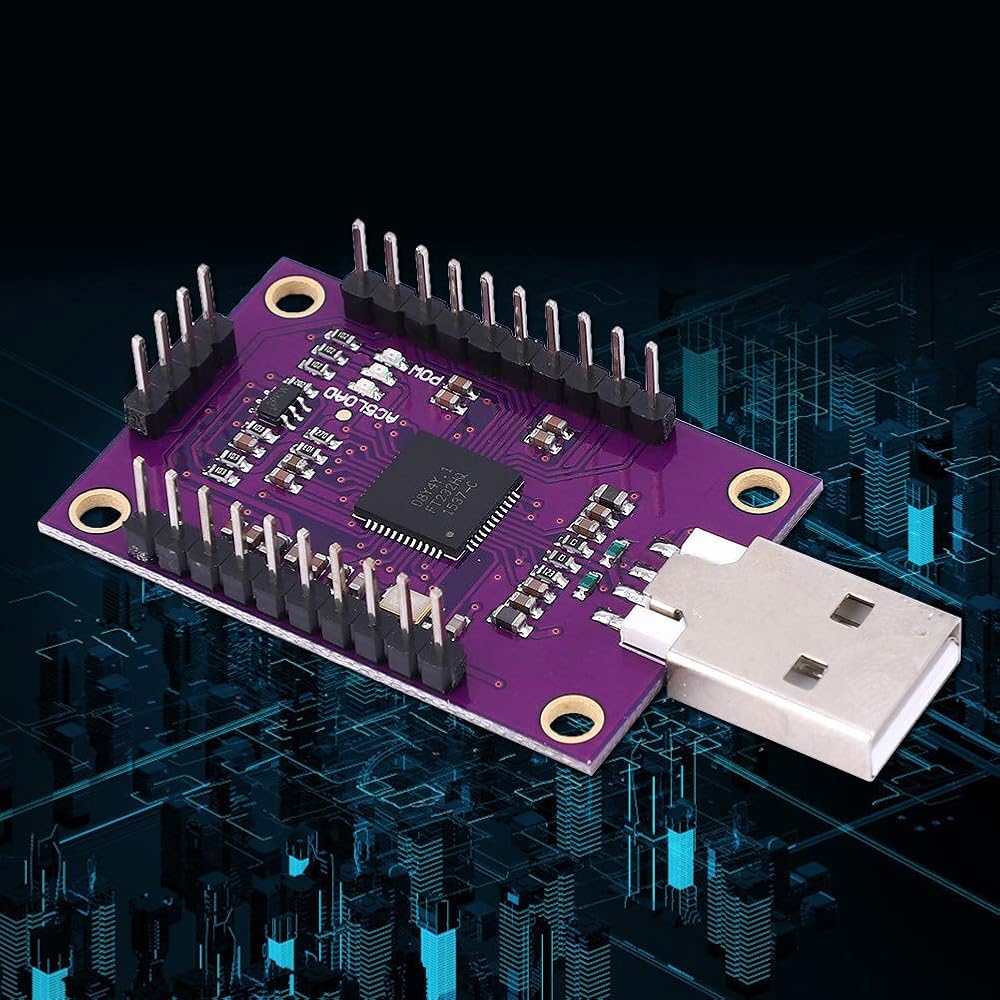

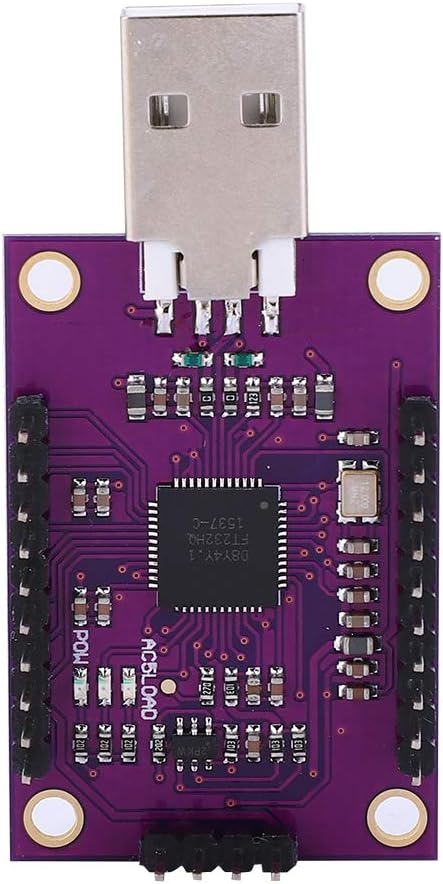

High Speed Multifunction USB to JTAG UART/FIFO SPI / I2C Module for Single Channel Serial/Parallel Ports with USB 2.0, MPSSE, 245 Parallel FIFO Mode

KWD 4.500
Brand
YWBL-WH
Category
Internal Cards
Weight
8 g
– 1 +

Special Features

  • This module supports single chip USB to UART, FIFO, FT1248, JTAG, SPI, I2C, Bit-Bang, and Fast Serial Interface modes, providing versatility for different applications.
  • The CJMCU FT232H Module offers high-speed data transfer with USB 2.0 compatibility, allowing for fast and efficient communication.
  • The 's royalty- Virtual Com Port (VCP) and Direct (D2XX) drivers eliminate the need for USB driver development, making it easy to use for most cases. It also has adjustable receive buffer timeout for added convenience.
  • With the Multi-Protocol Synchronous Serial Engine (MPSSE), this module simplifies synchronous serial protocol designs such as USB to JTAG, I2C, SPI, and bit-bang.
  • Made with materials, this CJMCU FT232H Module is built to last and ensure long-lasting performance.

Description

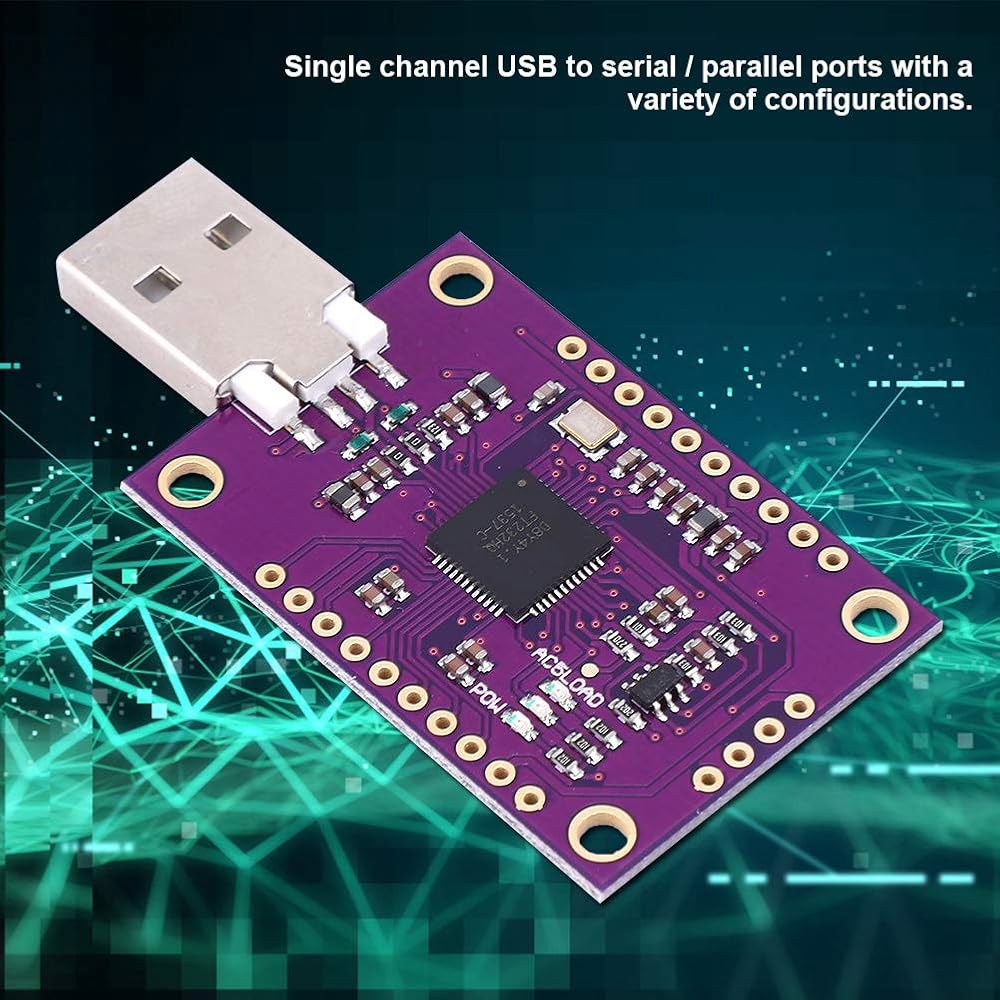

1. Single channel USB to serial / parallel ports with a variety of configurations.
2. Whole USB protocol handled on the chip, no USB specific firmware programming required.
3. USB 2.0 high-speed (480Mbits/Second) and full speed (12Mbits/Second) compatible.
4. Multi-protocol synchronous serial engine (MPSSE) to simplify synchronous serial protocol (USB to JTAG, I2C, SPI (MASTER) or bit-bang) design.
5. UART data transfer rate up to 12Mbaud (RS232 data rate is limited by externalshifter).
6. USB to synchronous 245 parallel FIFO mode transfer up to 40 megabytes/second.
7. USB to asynchronous 245 fifo mode data transfer rate up to 8 megabytes per second.
8. Support for special half-duplex FT1248 interface with configurable width, bidirectional data bus (1, 2, 4 or 8 bit wide).
9. CPU - style FIFO interface mode simplifies CPU interface design.
10. Fast serial interface option.
11. 's royalty- Virtual Com Port (VCP) and Direct (D2XX) drivers eliminate the requirement for USB driver development in most cases.
12. Adjustable receive buffer timeout.

Spec:
Condition: Brand New
Item Type: USB to JTAG UART/FIFO SPI/I2C Module
Typical Applications
Single chip USB to UART (RS232, RS422 or RS485)
USB to FIFO
USB to FT1248
USB to JTAG
USB to SPI
USB to I2C
USB to Bit-Bang
USB to Fast Serial Interface
USB to CPU target interface (as memory)

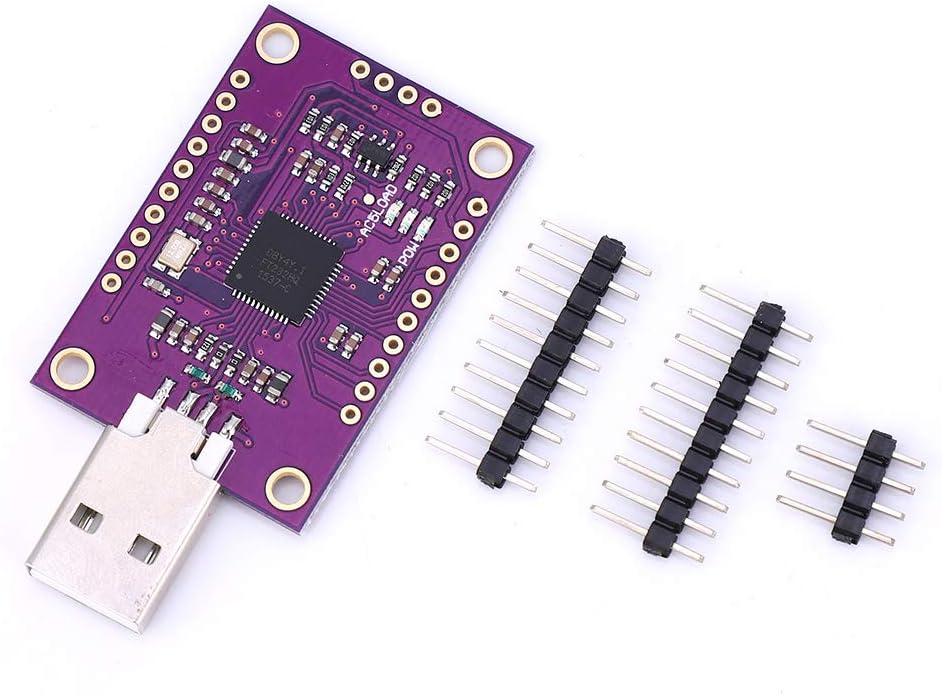

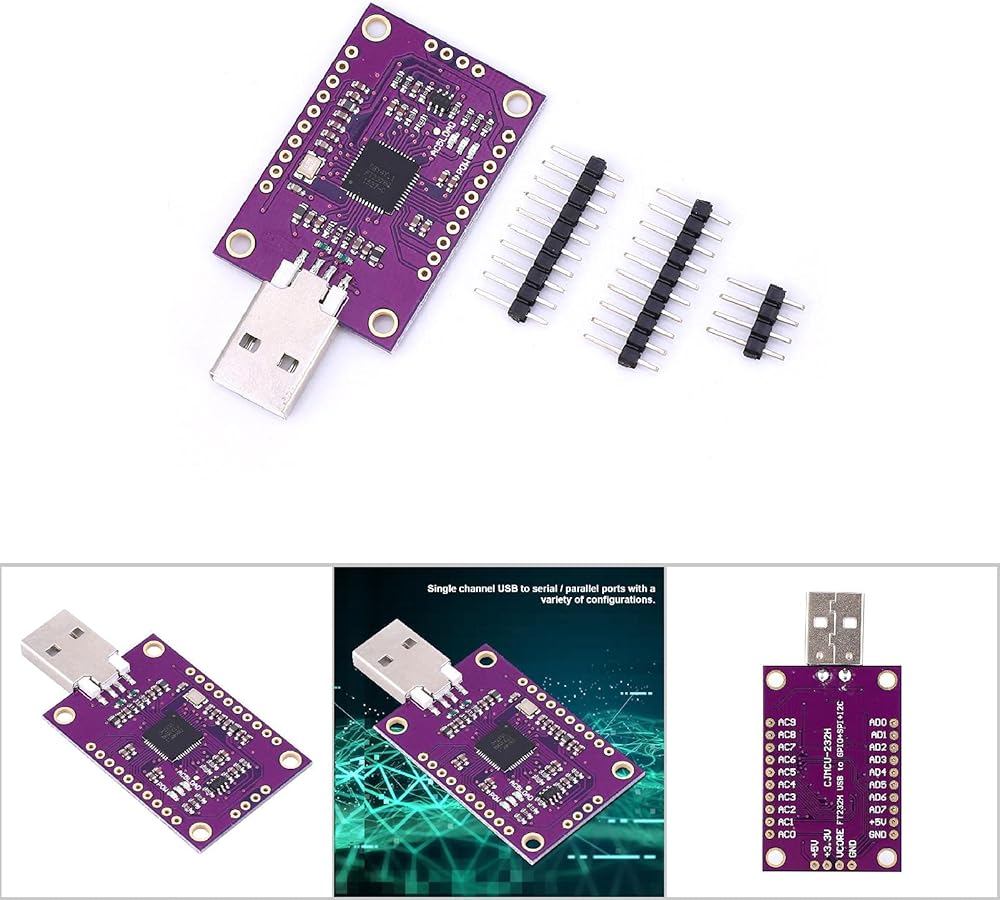

packing list:
1 x Module
3 x Pin Header
