13.73:1 Geared Nema 17 Stepper Motor with Integrated Planetary Gearbox 2 Phase 1.8‌°‌ 0.55Nm(77.89oz·in) High Torque Bipolar 2Ω 1.7A 83mm 4-Lead Shaft 20mm φ8mm Cable 1M 3D Printer DIY CNC in Kuwait 13.73:1 Geared Nema 17 Stepper Motor with Integrated Planetary Gearbox 2 Phase 1.8‌°‌ 0.55Nm(77.89oz·in) High Torque Bipolar 2Ω 1.7A 83mm 4-Lead Shaft 20mm φ8mm Cable 1M 3D Printer DIY CNC in Kuwait 13.73:1 Geared Nema 17 Stepper Motor with Integrated Planetary Gearbox 2 Phase 1.8‌°‌ 0.55Nm(77.89oz·in) High Torque Bipolar 2Ω 1.7A 83mm 4-Lead Shaft 20mm φ8mm Cable 1M 3D Printer DIY CNC in Kuwait 13.73:1 Geared Nema 17 Stepper Motor with Integrated Planetary Gearbox 2 Phase 1.8‌°‌ 0.55Nm(77.89oz·in) High Torque Bipolar 2Ω 1.7A 83mm 4-Lead Shaft 20mm φ8mm Cable 1M 3D Printer DIY CNC in Kuwait 13.73:1 Geared Nema 17 Stepper Motor with Integrated Planetary Gearbox 2 Phase 1.8‌°‌ 0.55Nm(77.89oz·in) High Torque Bipolar 2Ω 1.7A 83mm 4-Lead Shaft 20mm φ8mm Cable 1M 3D Printer DIY CNC in Kuwait 13.73:1 Geared Nema 17 Stepper Motor with Integrated Planetary Gearbox 2 Phase 1.8‌°‌ 0.55Nm(77.89oz·in) High Torque Bipolar 2Ω 1.7A 83mm 4-Lead Shaft 20mm φ8mm Cable 1M 3D Printer DIY CNC in Kuwait

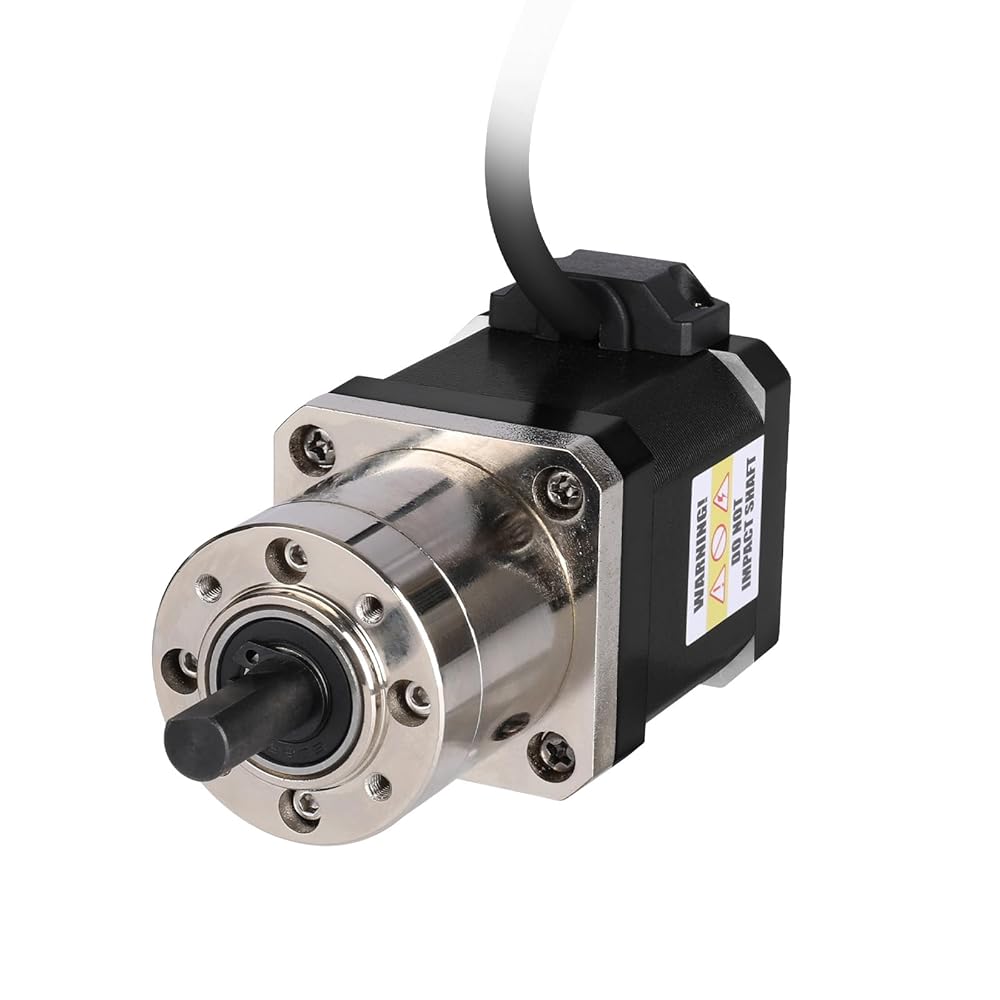

13.73:1 Geared Nema 17 Stepper Motor with Integrated Planetary Gearbox 2 Phase 1.8‌°‌ 0.55Nm(77.89oz·in) High Torque Bipolar 2Ω 1.7A 83mm 4-Lead Shaft 20mm φ8mm Cable 1M 3D Printer DIY CNC

KWD 15.500
KWD 17
Brand
YEJMKJ
Weight
0.6 kg
– 1 +

Special Features

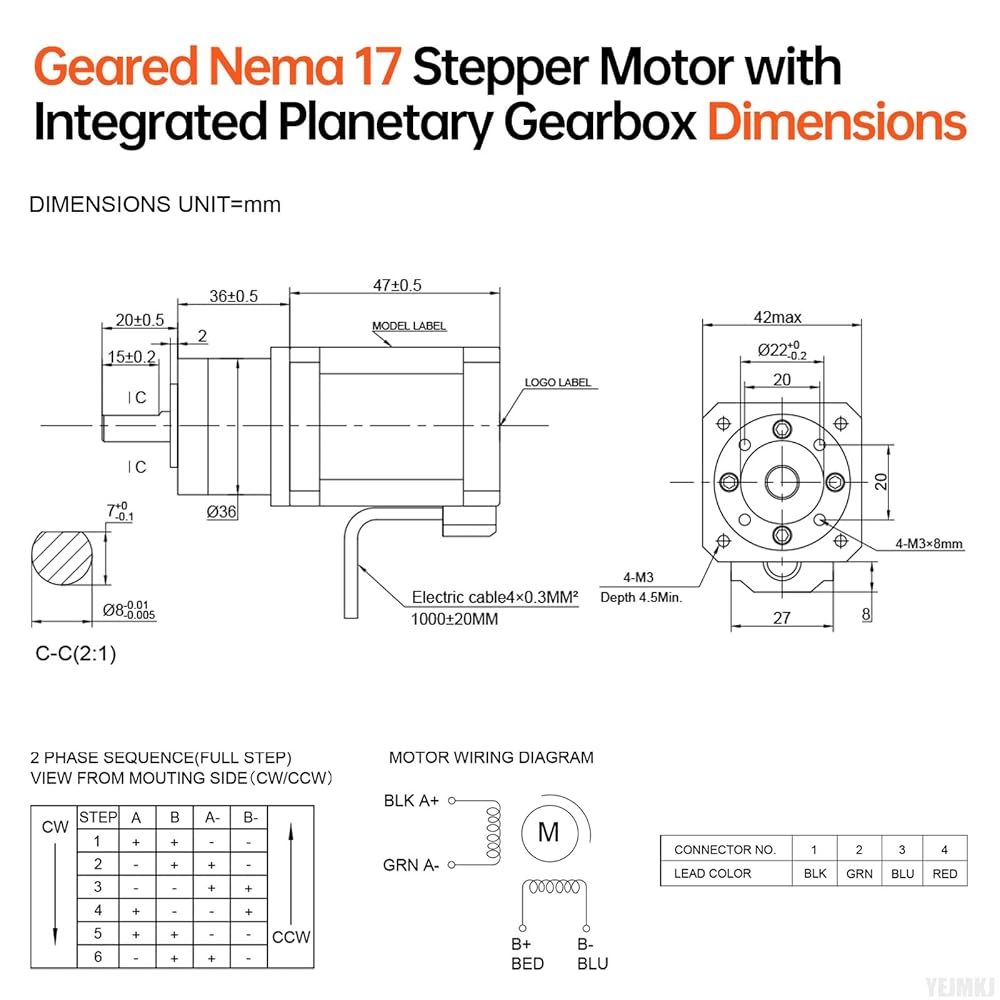

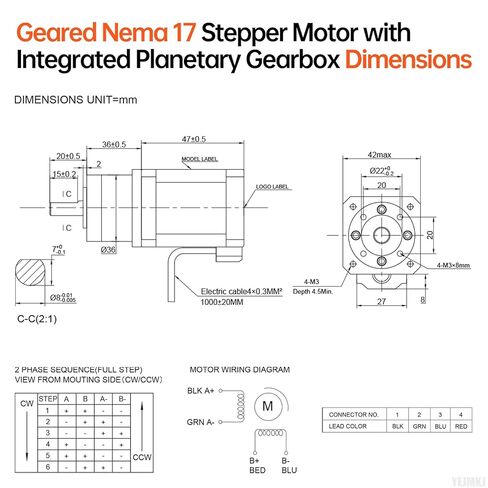

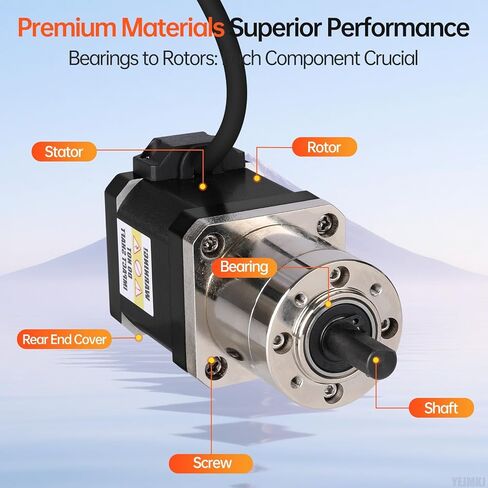

  • Specifications: 13.73:1 Geared nema 17 stepper motor with integrated planetary gearbox has the following various dimensional parameters. Body size 42x42x83mm (1.66x1.66x3.27in), Shaft length 20mm, Shaft diameter Ø8mm, D-cut length 15mm, Lead color Black (A+) Green (A-) Red (B+) Blue (B-), incl. Cable 1M, Weight 583g.

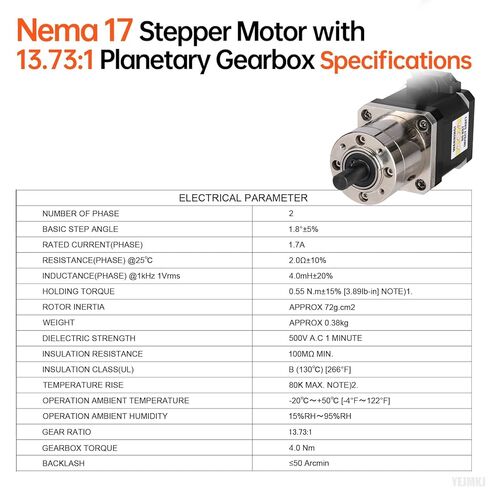

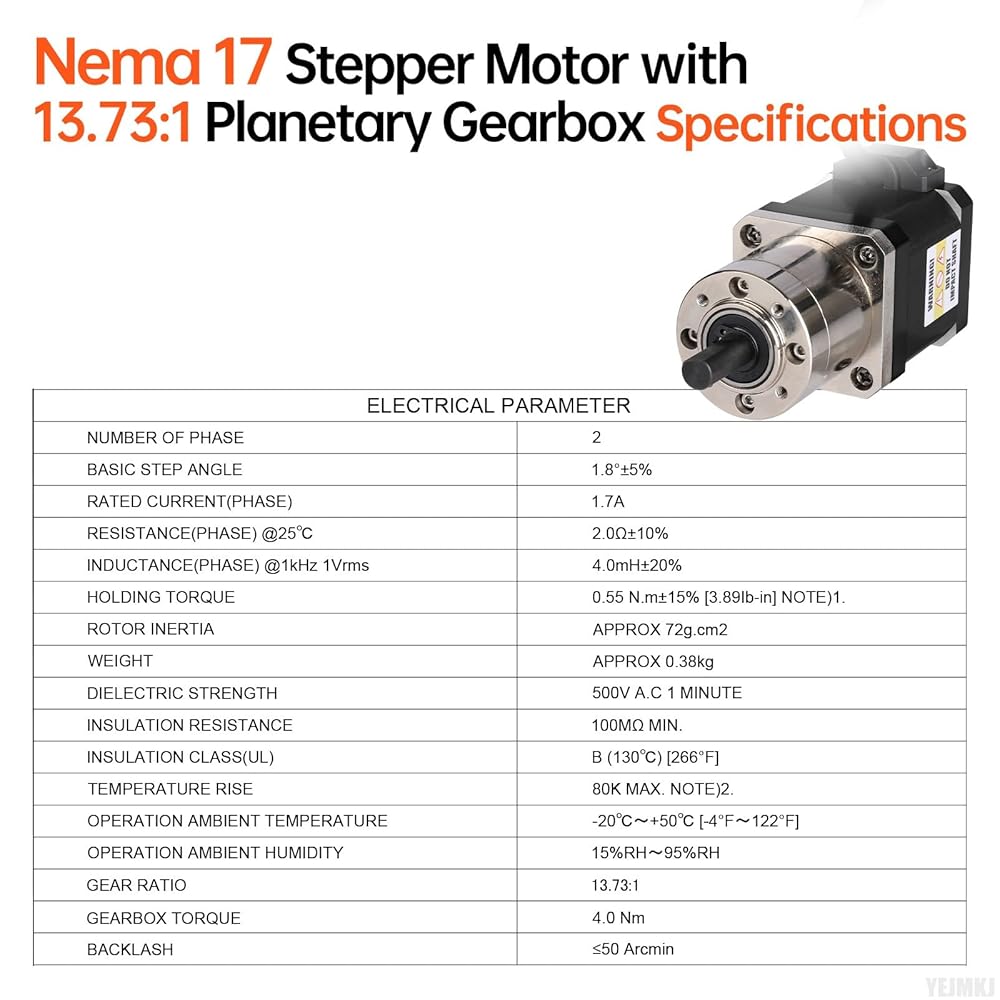

  • Performance Data: Ratio 13.73:1 Planetary Gearbox 17 Stepper Motor, Step angle 1.8‌dge(200 steps/rev), 2 Phase Holding torque 0.55Nm (77.89oz·in), Resistance 2.0Ω, Rated current 1.7A, Inductance 4.0mH±20%, Rotor inertia approx 72g.cm².
  • Safety: This Nema 17 Stepper Motor with planetary gear boasts safe and reliable operation, with the following key safety parameters. Dielectric strength 500V A.C 1 MINUTE; Insulation resistance 100MΩ MIN; Insulation class(UL) B (130℃) [266°F]; Temperature rise 80K MAX; Operation ambient temperature -20℃～+50℃ [-4°F～122°F]; Operation ambient humidity 15%RH～95%RH.
  • Precision-Built for Higher Output: Built with advanced steel cores and precisely tuned windings, this nema 17 planetary reducer stepper motor generates up to 20% stronger holding torque while significantly reducing noise output. Achieve smoother machine motion and lower acoustic impact.
  • Things to Note: Increasing speed lowers torque, with the recommended range of 0–600 RPM. Lower current results in lower torque and temperature rise, while reduced voltage decreases torque (range: 12–24V DC). In 3D printers, DIY robots, and CNC machines, the 42mm Stepper Motor with Planetary Gearbox's compact size and high torque are perfect for a variety of demanding applications.
