DY-T3s For Sony hot Shoe converter
Note: This adapter is not compatible with for Sony brand flashlights for use as top lights. It supports the adapter for ordinary flashlights such as for Canon ports/for Nikon ports Port/Godox/Yongnuo/single-point trigger flash usage.
001) Product packaging and shipping list (DY-T3S 1pcs + PC synchronous Line 1pcs)
Function - The DY-T3S flash hot shoe adapter enables you to trigger the flash connected to the top of the adapter's hot shoe, as well as through the PC port and two A 3.5mm female headphone jack, connecting a cable to trigger other flashes. Up to 4 flashes can be triggered simultaneously (only manual exposure mode is supported) The shutter speed of the Alpha camera should be controlled within 1/250S (the E-TTL function is not supported).

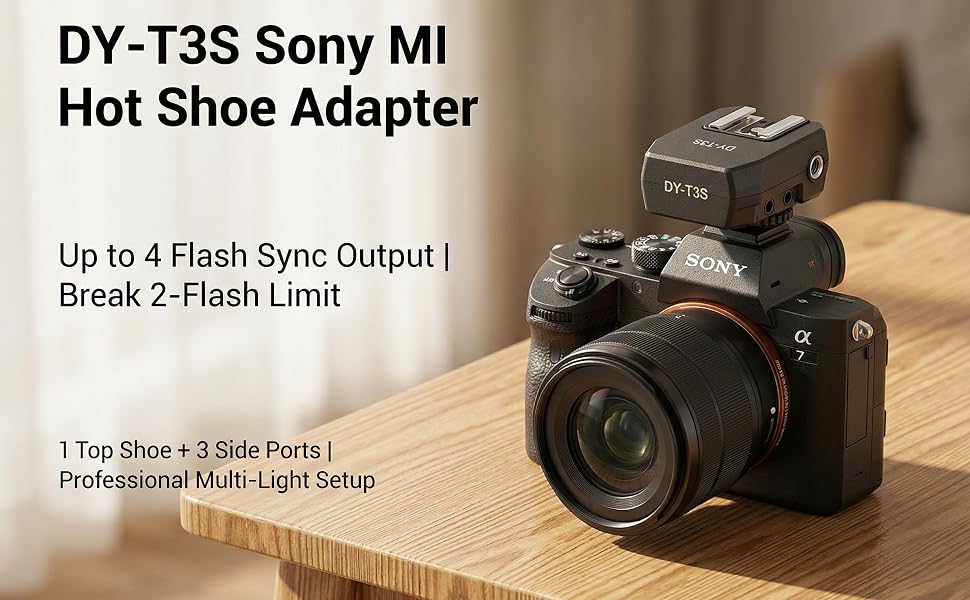

2: Camera - The DY-T3S can only be used for SONY brand camera control and must be a mirrorless camera with a "Mi hot shoe" on the top of the camera It supports the common manual flash trigger function, but does not support the E-TTL function. Cameras and DV cameras are not supported (because these machines themselves are hot) The boots do not have the function of triggering a photo.
3: Flash - All single-point and multi-contact flashes are supported for use on the top of the camera (for sony Mi hot shoe flash is not supported). The top hot shoe of the DY-T3S Supports triggering single-point or Canon port/Nikon port camera triggers/flash triggers/remote controls.
4: Introduction to the DY-T3S
port: 4-1) : PC port function of the adapter:
a) It can be connected with PC-3.5mm/6.35mm synchronous connection cables to trigger indoor studio flashes with "SYN" 3.5mm/6.35mm jacks Lamp. (The brand and model of the flash are not restricted and can be used interchangeably.)
b) When paired with a PC-PC synchronous connection cable, it can be connected to trigger all flashlights with a "PC" port
4-2) : The functions of the 3.5mm headphone socket sub-ports on both sides of the adapter: When paired with a 3.5mm-3.5mm/6.35mm cable, it can trigger an indoor studio flash with a "SYN" 3.5mm/6.35mm jack. (Unlimited) The brands and models of flashlights can be used interchangeably.
b) When paired with a PC-3.5mm synchronous connection cable, it can be connected to trigger all flashlights with a "PC" port
5: The function of the pull-up switch on the DY-T3S adapter:
