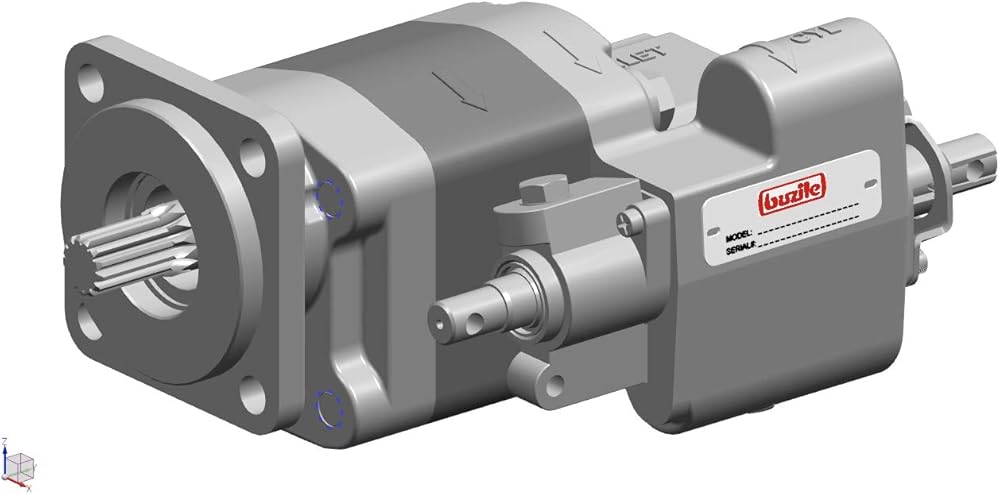

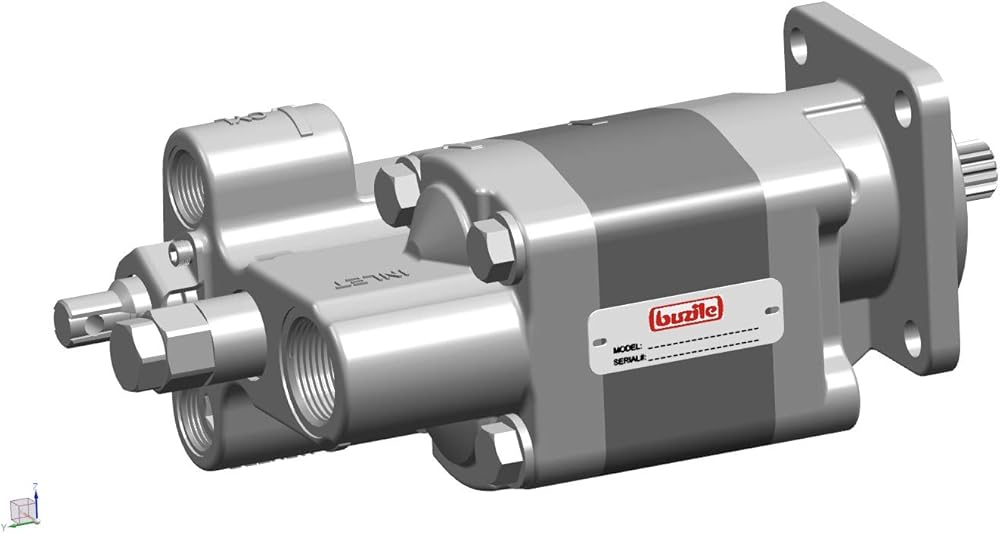

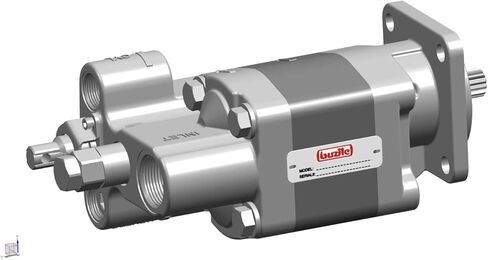

BG102-20RMS

Gear Width: 2.0"
Flow at 1800 RPM: 29 GPM
Rotation: CW (Clockwise)
Relief Valve Setting: 2300 PSI
Max Pressure: 2500 PSI
Max Speeds: 2400 RPM
Porting: 1 1/4" NPT Inlet, 3/4" NPT Outlet
Mounting: SAE 4 BOLT B
Input Shaft: 7/8"-13 Tooth Spline Shaft
Cubic Inches Per Revolution: 3.94
Manual Shift

Description features:
1. Pump and cylinder protected in the “Raise” and “Neutral” position of the spool
2. Air shaft cylinder available
3. Built-in load check maintains dump body angle and is installed in the cylinder port for superior self-cleaning
4. Direct mount SAE “B” 4 bolt
5. Built-in direct acting relief valve set at 2300 PSI at the factory
6. All pumps and relief valves are 100% factory tested
7. High strength alloy steel gear and shaft set
8. Neutral lock-out safety cap for use with pull-out cable
9. 2 line for intermittent duty or 3 line for continuous duty systems
10. Pressure balanced wear plates maintain high pump efficiency throughout all operating ranges
11. Applications – Dump Truck / Trailer

Buzile BG102-20RMS Dump Pump Crossovers and Interchanges:
G102-1-2.0R-4S (Parker/Commercial)
S3LD-15-2BRPR or S2LD-15-2BPRR (Muncie)
DMD-400-20-ZR-200 or DMD-400-20-XR-200 + 400-00870 (Permco)
WAP102G-20R(World American)
CH102120CW (Buyers)
MH102G-20-RMS (Metaris)
GP-102-RMS-20 (Bezares)
G102-2.0-RH-M-2 or G102-2.0-RH-M-3 (PHP)
TKD400RH (TK)
G102RH, S-18554 (New Star)
308-9310-416 (10 Digit#)
