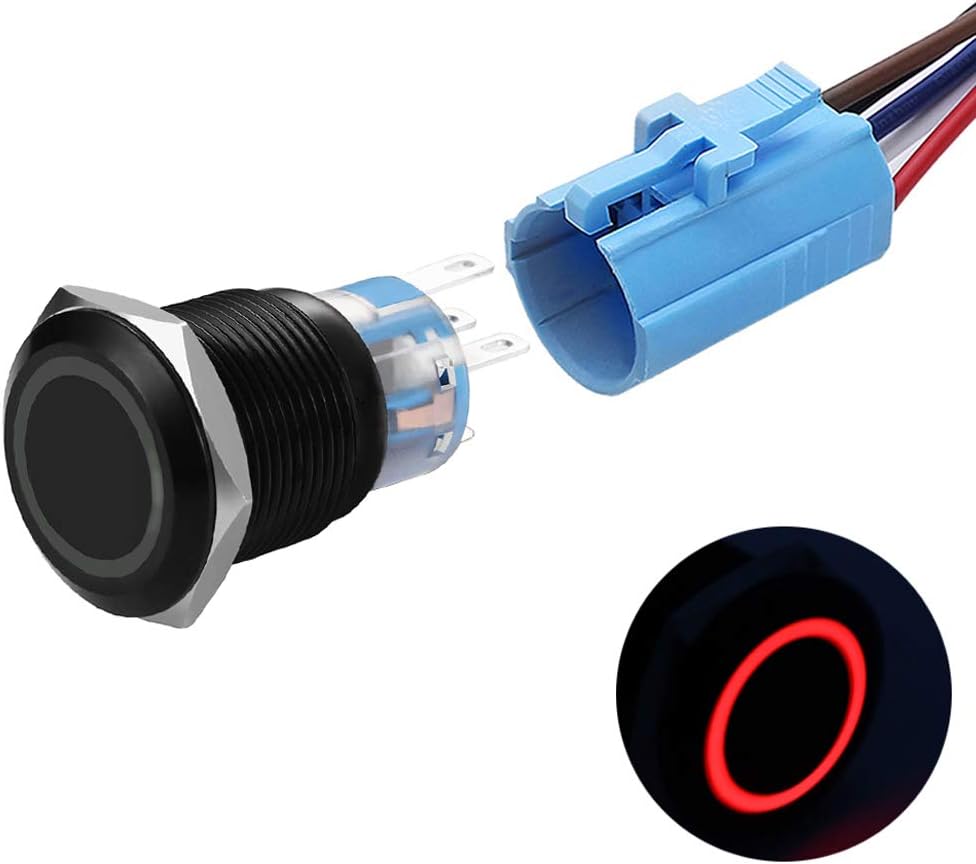

19mm Latching Push Button Switches SPDT ON/Off Waterproof Black Metal 12V Ring LED with Wire Plug (Red)

KWD 4.500
Brand
Quentacy
Weight
9 g
ColorRed
– 1 +

Special Features

  • Mounting hole size: 19mm; Head Diameter: 22mm
  • Latching switch: Push-ON; Push it again-OFF
  • Shell Metarial: Zinc aluminum alloy(waterproof and dustproof degsain)
  • Switch rating: 5A/250V AC; LED rating: 15mA, AC/DC 12V; The switch and LED are separated, LED can be on all the time or only on when switch is on,depending on how you wire it.
  • Latching Push Button Switch can be applied to car motorcycle modificine ,electric equipment ,appliance,machine ,home Lamps and so on

Description

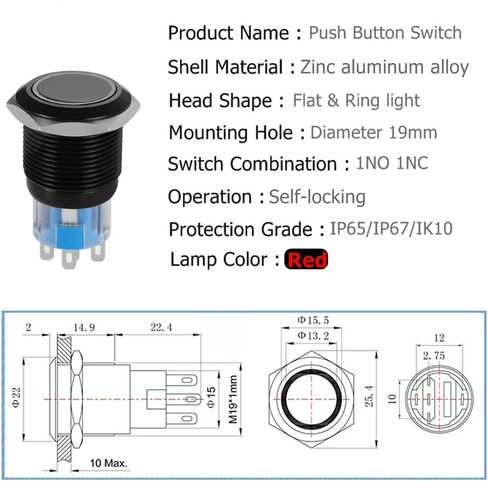

Specifications:
Head diameter: 7/8" (22mm)
Mounting hole size: 3/4" (19mm)
Switch combination: 1NO1NC
Operation types: Latching
Switch rating: 5A/250V
LED rating: 15mA, AC/DC 12V
Head shape: Flat & Ring
Enclosure material: Zinc aluminum alloy
Protection level: IP65/IP67/IK10 Package include :
1* Push Button Switch
1* Wire Connector Sockets

Latching Switch Used for:
Most often latching switches are used for various additional electric equipment, inside & outside the car motorcycle (Such as critical lights, chassis lamp, fog lamps, dome light and so on)
