WS2812B WS2815 SK6812 SK9822 APA102 Led Lights 2048 Pixels Controller Computer Programmable Controller with SD Card K-1000C DC5-24V

KWD 12.500
Brand
TOPXCDZ
Weight
331 g
– 1 +

Special Features

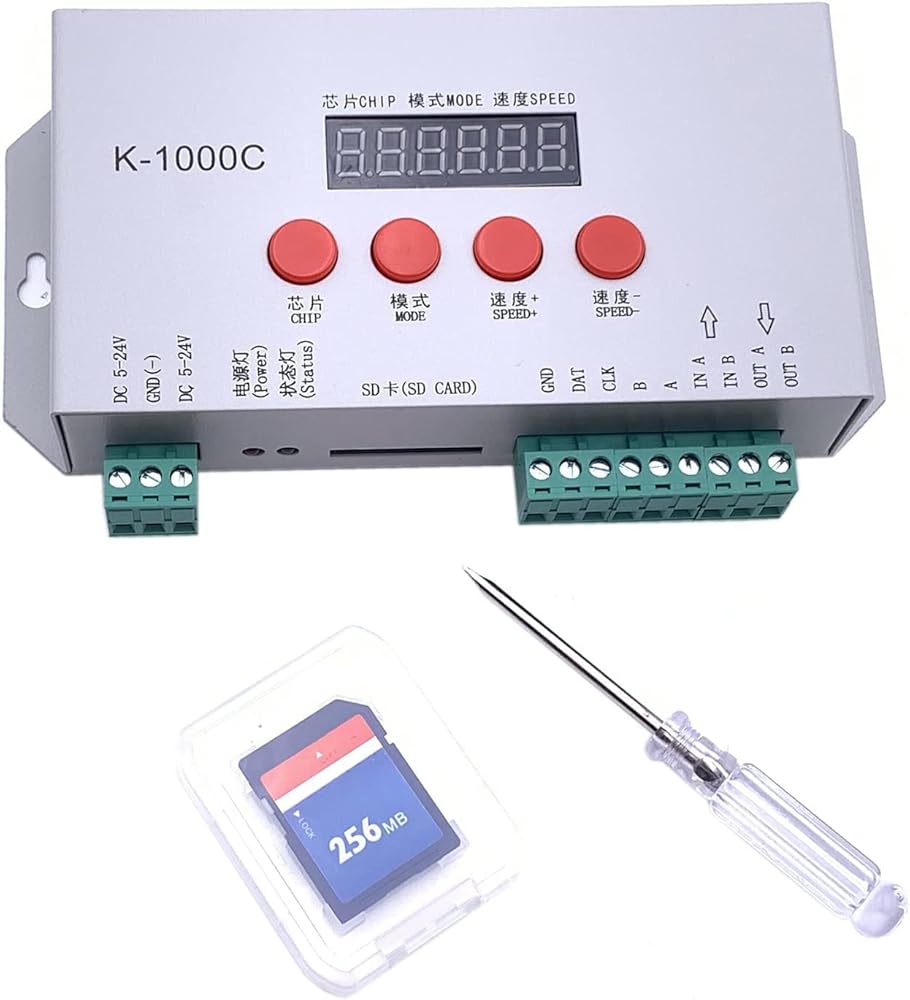

  • Package: 1* K-1000C controller 1* 256Mb SD card 1* user manual 1* user manual e-file(in the SD card) 1* LedEdit2019 software(in the SD card)

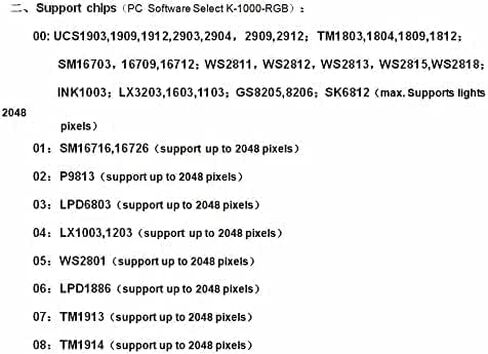

  • It supports all the smart IC on the market . Including WS2812B,WS2811,WS2813,SK9822,SK6812RGBW,APA102C,WS2801,etc . All the dual data led chip , data and clock led chip,single data led chip. It is suitable for engineering projects or customers' DIY project .Support SD card 128MB-32GB. Install LEDEDIT software on window computer.Can not work with Mac.

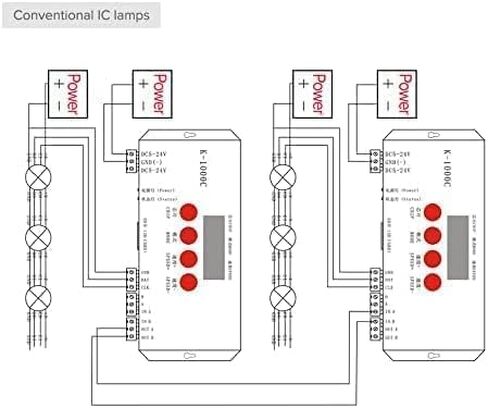

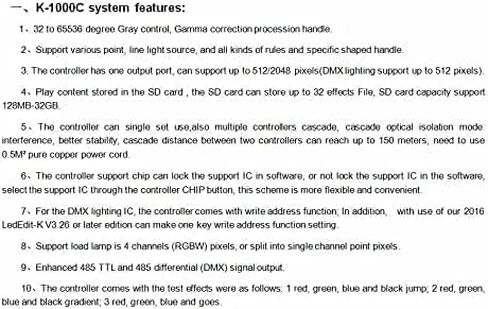

  • 32 levels-65536 levels of gray control, software gamma correction processing. Support points, lines, areas, rules and shaped handles. Single port output can support 2048 pixels. Multiple controllers can be cascaded together and work synchronously Compatible with single-wire or two-wire chips.

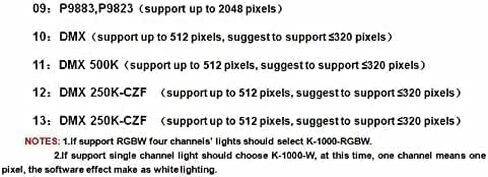

  • Remarks: 1. K-1000-RGBW should be selected for lamps with RGBW four channels. 2. For a single-channel lamp with a load, K-1000-W needs to be selected. At this time, a channel represents a pixel, and the software effect is white
  • 512 pixels 30 frames/second, 1024 point pixels 25 frames/second and 2048 pixels 15 frames/second. Max control WS2812B 2048 pixels.Usually we recommend 1000-1500 pixels. More pixels will decrease the speed of data transmission.

Description

Precautions:
1. Before copying the file to the SD card, the SD card must be formatted first. Note that it must be formatted before each copy.
2. The SD card must be formatted into "FAT" format or "FAT32" format.
3. The SD card cannot be hot swapped, that is, every time the SD card is plugged and unplugged, the controller must be disconnected from the power supply.
size:159*89*24mm
Material:metal
colour:White
Package Contents:
1* K-1000C controller
1* 256Mb SD card
1* user manual
1* user manual e-file(in the SD card)
1* LedEdit2019 software(in the SD card)
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
