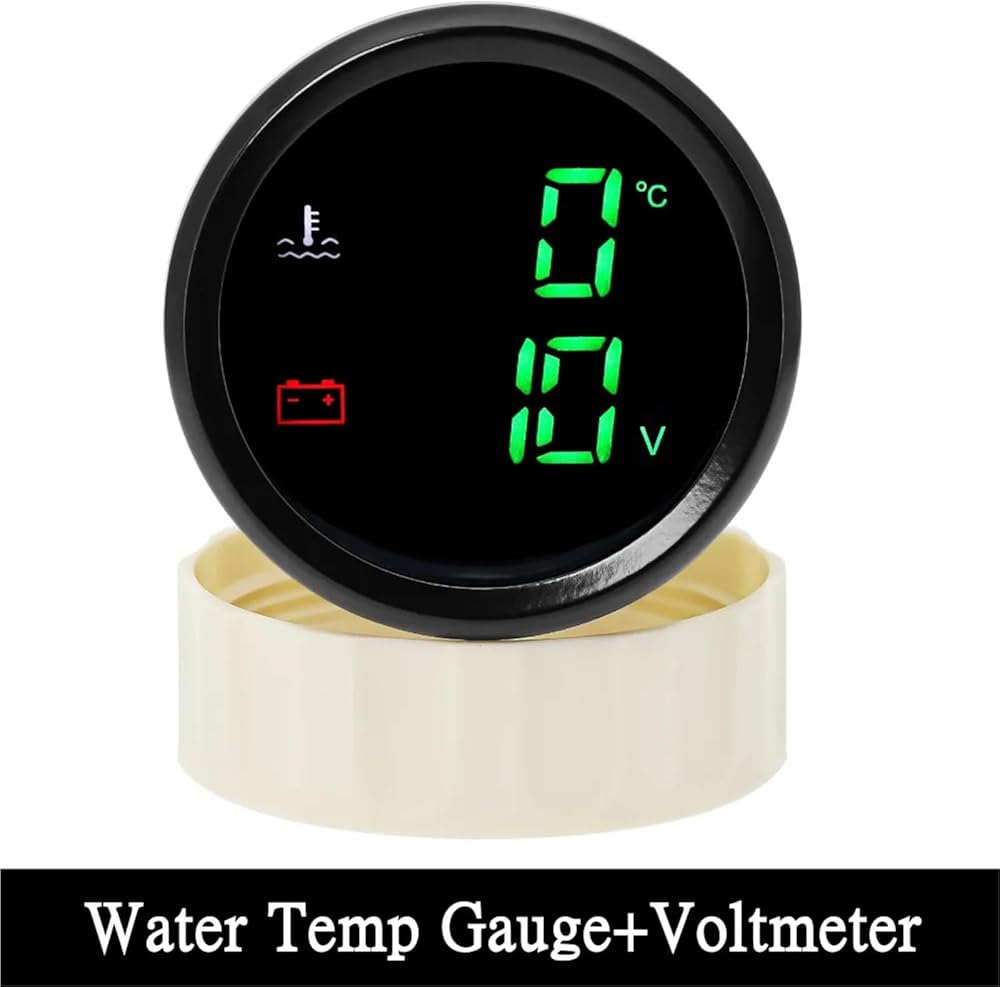

HD Waterproof 52mm Dual Gauge 2 In 1 Multifunction Gauges uel Level Water Level Meter HTG Sewage Gauge Voltmeter for Boat Yacht 12v/24v
About the Gauge Reading:
The device works, with a little delay (about 20-80 seconds) of changes in the readings. Apparently, it is done in order not to react to the splash of water in the tank.
Feature:
- 52mm diameter Two in One Gauge show with easy installation
- Programmable Input Resistance Ohm Signal to adapt different fuel /water/temperature sensor
0-190, 0-180, 10-180, 240-33, 240-30
- High Resolution View under sunshine
- Installation Diameter: 52mm (2inch)
- Reverse polarity protection and anti-fogging performance
- Working Voltage:12V/24V
- Working temperatures: - 40 to 85°C
- IP66 Waterproof
- Fuel Level Gauge Alarm Set:20%
-Water Temperature Gauge Alarm Set : 98±2
Connection:
black line connect to the negative line,
red line connect to the positive line,
green line connect to the sensor signal line,
yellow line is exchange button line
Backlight :
- Green Backlight
- Red alarm light
Water Temperature Range : 40~120 / 104~248
1. All units with water temperature can be switched to or F by pressing the key
2. You can press the key to set the alarm parameters. When the alarm threshold is reached, the icon will become red backlight
INSTALLATION GUIDE
1. Cut an 52mm (2-1/16") hole in the panel (II) allow a clearance of 55mm (2 3/16"). behind the panel.
2. Remove fastening ring (I), insert gauge from front. Tighten gauge (III) using fastening ring ( I)
3. Connect cables according to the diagram/label.
Setting Menu:"Unit" "R 1" "R 2"
1.Hold & Press the button Power On Gauge the LED screen will show Switch Show
Unit, R1, R2
2.Unit
Fuel Gauge, Water Level, HTG Sewage Level: %
Water temperature: or
3.R1---Configure Top Row Signal Range
Press Button to switch 000 ~006
For example, LED will show 001, which means 0~180ohm, then release the button and wait digital flash to complete to save setting
4.R2---Configure Top Row Signal Range
Press Button to switch 000 ~006.
For example, LED will show "002" , which means 10~180ohm, then release the button and wait digital flash to complete to save setting
Package include
1 x 52mm Gauge

52mm Gauge
Fuel and water temp
Fuel and temp
Water and Sewage Level Meter
Fuel and Voltmeter
Water and fuel

==========
High-concerned chemical : None
Other Part Number : fuel level gauge
Placement on Vehicle : Front

Part Number : Auto Digital Fuel Level Gauge
Interchange Part Number : Mini Digital Fuel Meter Motorcycle Gauge
Special Features : 0-190ohm Fuel Gauge
Item Weight : 0.5kg
Item Height : 0
Item Width : 52mm
Item Length : 52mm Boat Fuel Tank Level Gauge

NO. : Fuel level gauge
Material : stainless steel 316L bezel+anti-fog glass
Item name : 2 In 1 Dual 52mm Gauge
Fuel Level Sensor Signal : 0~190ohm
Type : Fuel Gauges for Auto Boat
feture : Auto Digital Fuel Level Gauge
boat car fuel gauge : fuel level sensor
Application : Car Fuel Gauge for car truck yacht
fuel gauge sending sensor : fit Fuel Level Meter
fuel gauge sending sensor support : Water Liquid Level Gauge Meter
Water Liquid Meter : Car Boat Water Tank Level Gauge
Fuel Sending Unit : fit for Water Level Gauge Fuel level gauge
5 Holes Sensor Support : Fuel Level Gauge, Water Level Gauge
LEVEL SENSOR : boat fuel gauge
Water temp gauge : Temperature Sensor
Water Temp Gauge : 40-120 Celsius, 104-248
Working VOLT : 9-32V
52mm Fuel Level Gauge : Oil Tank Level Meter Indicator
2" 52mm Dual Gauge : Multi Gauge
52mm Gauge : Green LED Light
HTG Gauge : HTG Sewage Gauge
Car voltmeter : voltage gauge meter
