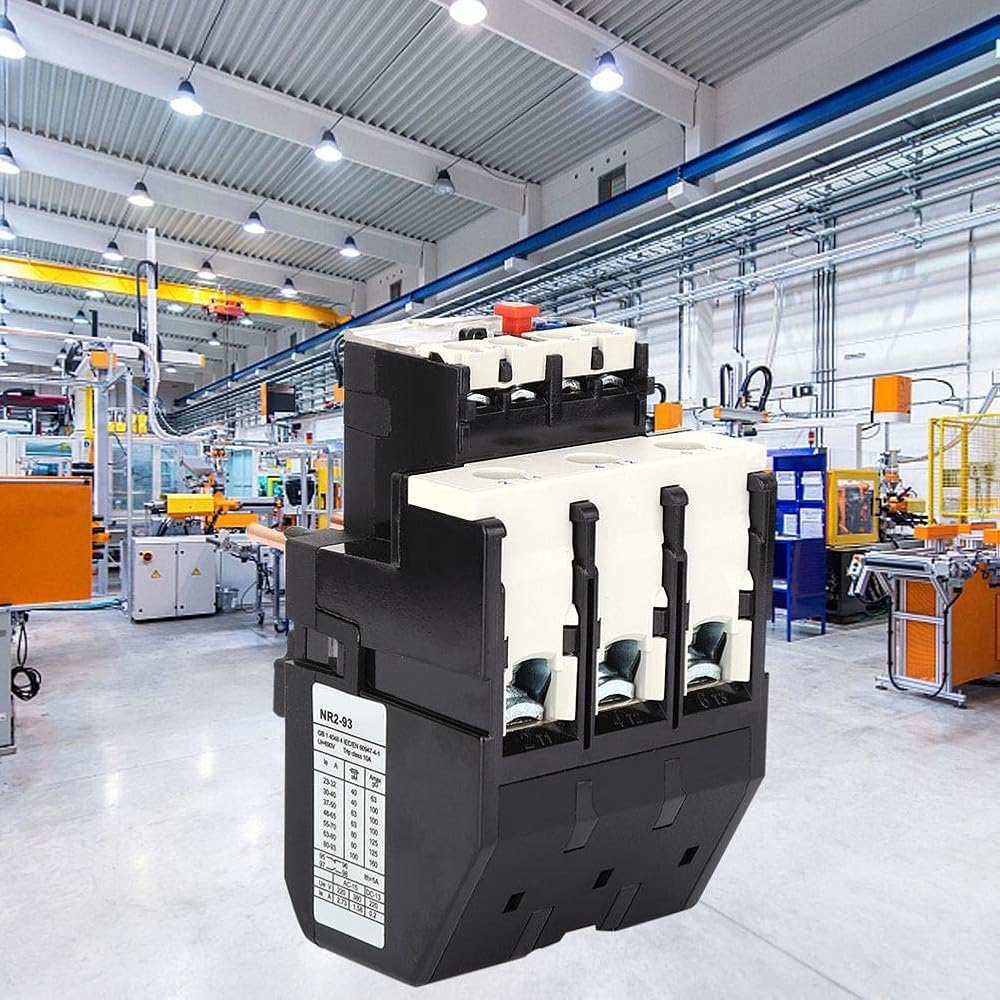

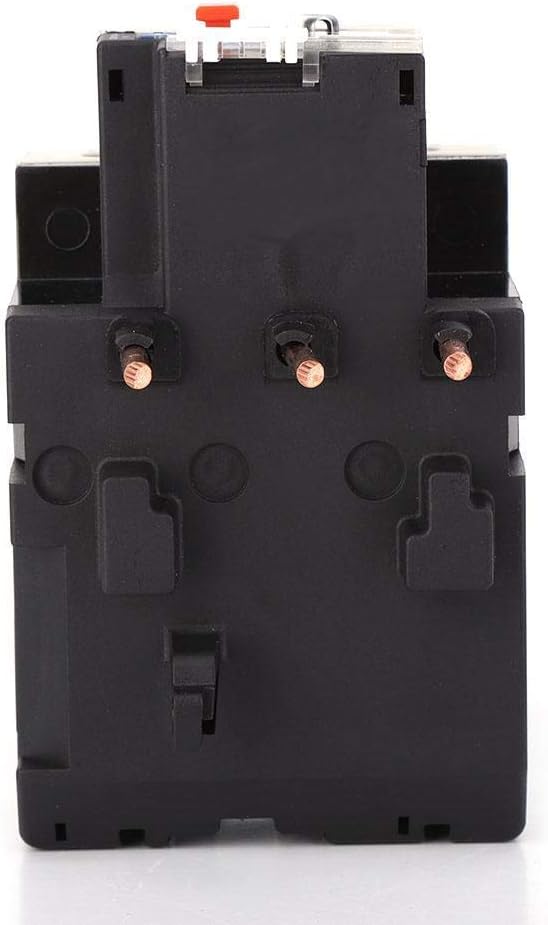

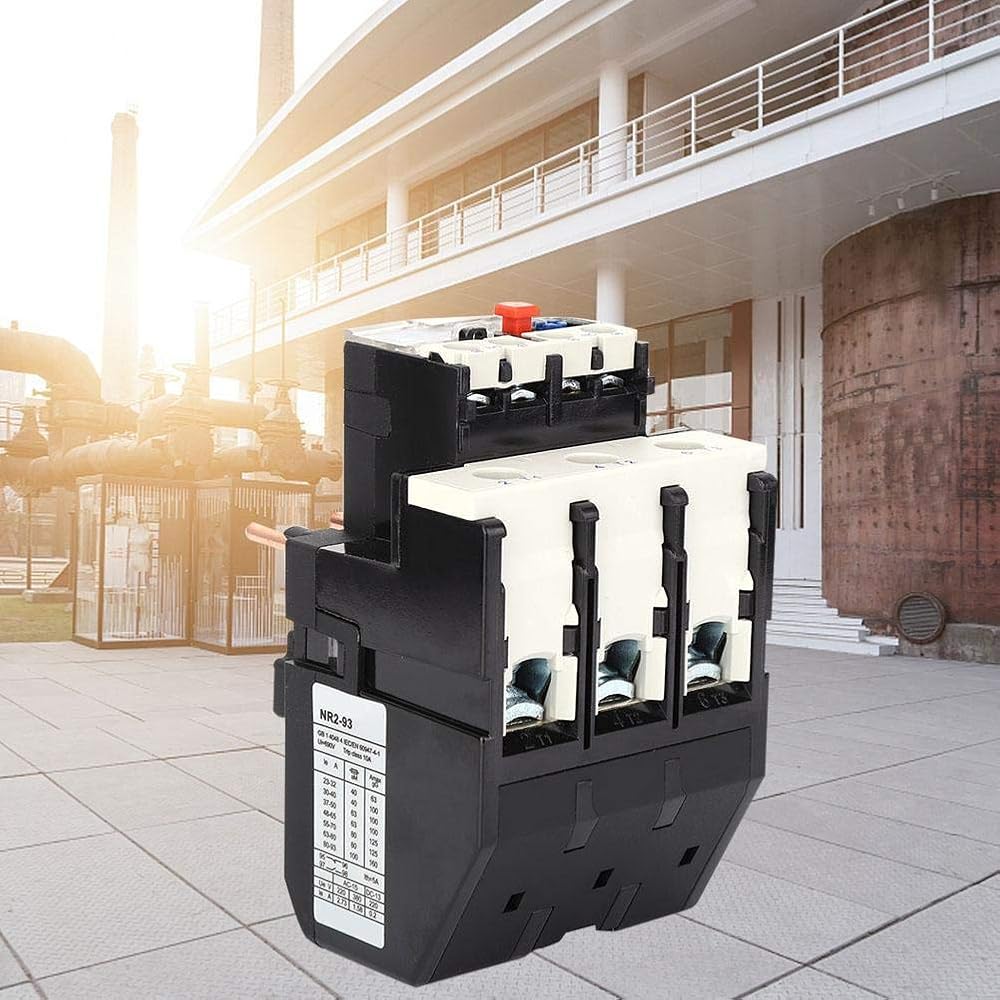

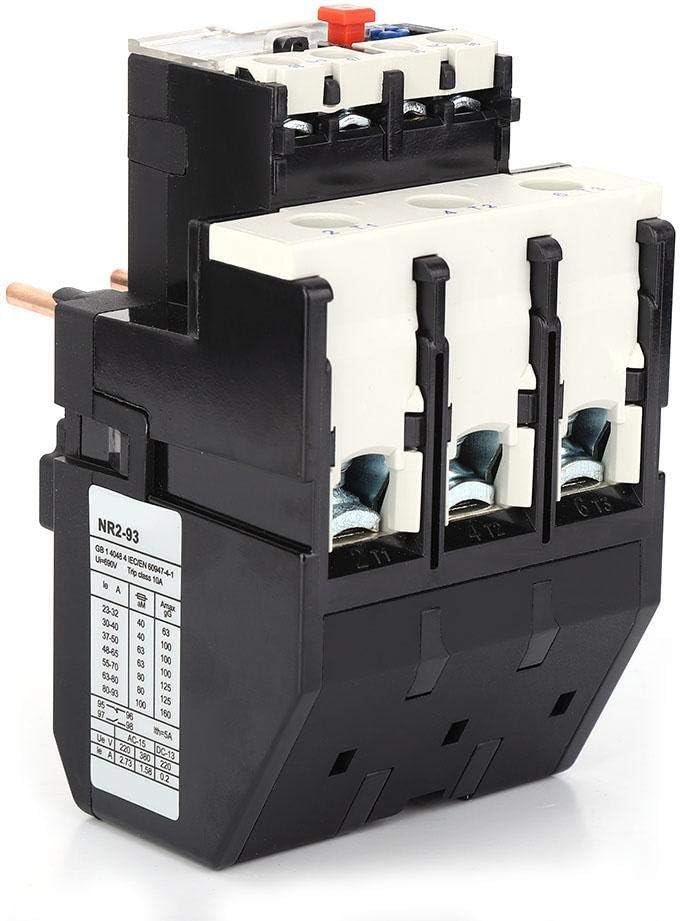

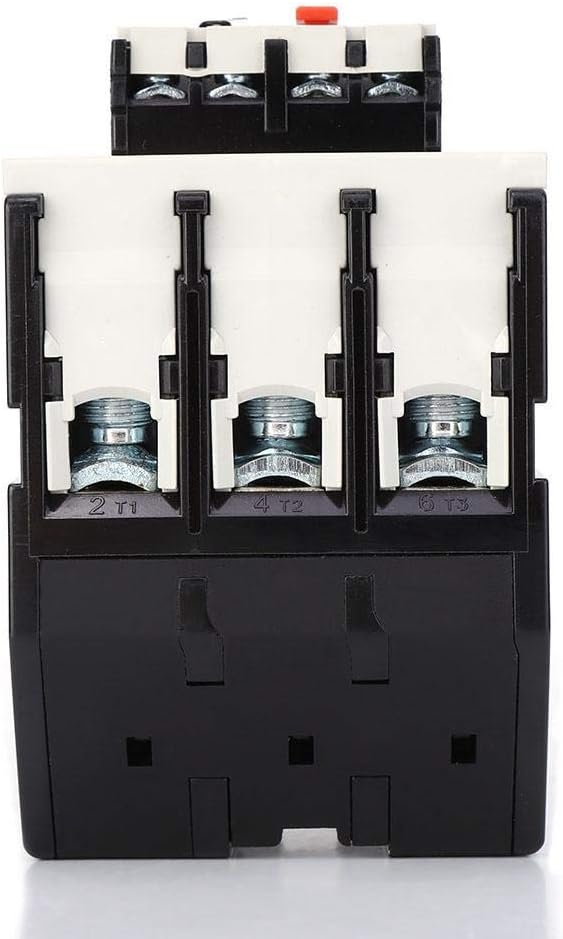

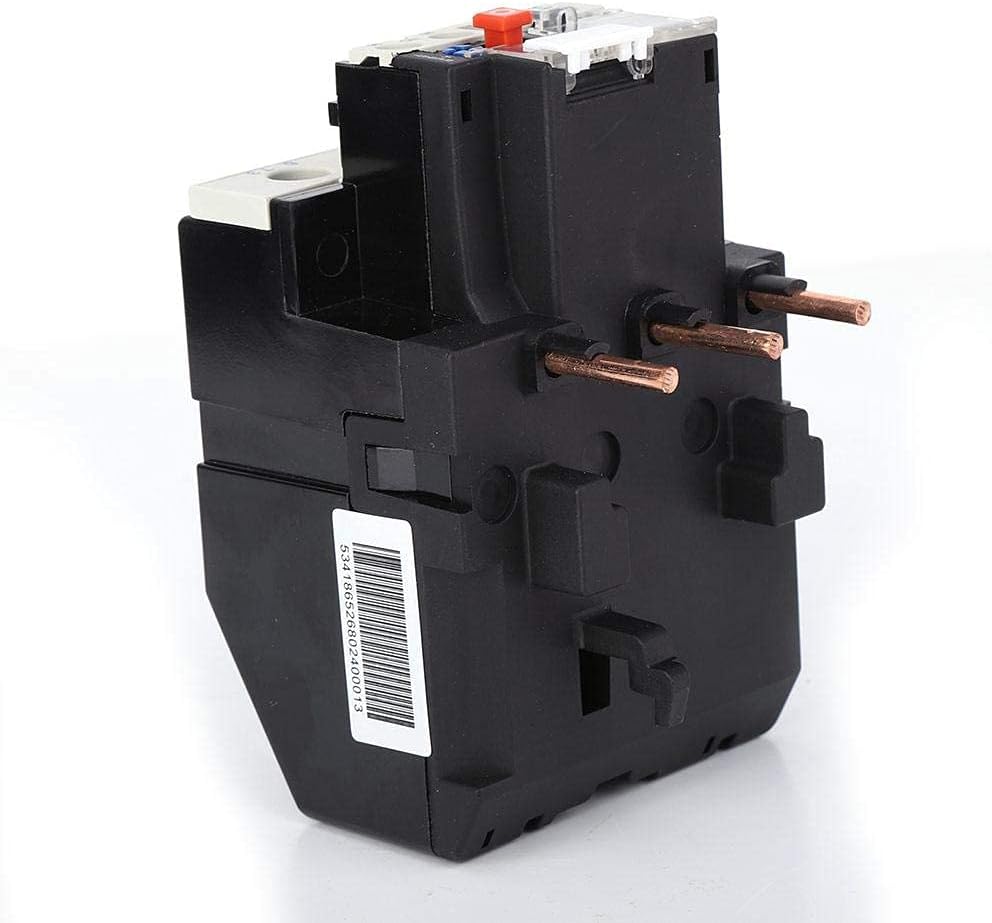

Walfront 3 Phase Thermal Overload Relay, NR2-93, Automatic, 40A, 1NO 1NC

KWD 10.500
KWD 12.500
Brand
Eujgoov
Weight
448 g
Size37-50A
– 1 +

Special Features

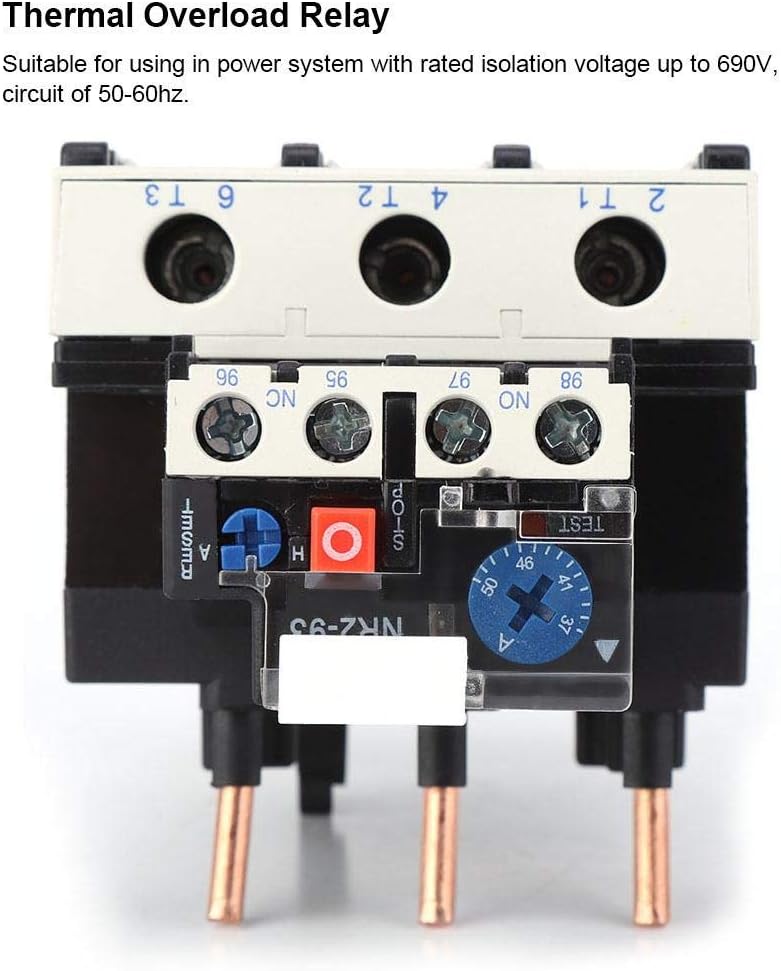

  • Suitable for using in power system with rated isolation voltage up to 690V, circuit of 50-60hz.
  • Can be used as overload protection of your long term or indirect long term service motor.
  • Used for protecting the phase break when the electric motor is overload.
  • The relay has different mechanism and temperature compensation.
  • With phase break protection, manual and automatic reset, temperature compensation, trip indication, test button and stop button.

Description

Specification:
Item Type: Thermal Overload Relay
Power Frequency: 50-60hz
Optional Rated Current: 30-40A,37-50A,48-65A,55-70A,63-80A,80-93A
Rated Insulation Voltage: 690V
Phase Break Protection: Yes
Manual and Automatic Reset: Yes
Temperature Compensation: Available
Tripping Instructions: Yes
Test Button: Yes
Stop Button: Yes
Installation: Plug-in
Auxiliary Contacts: 1NO + 1NC

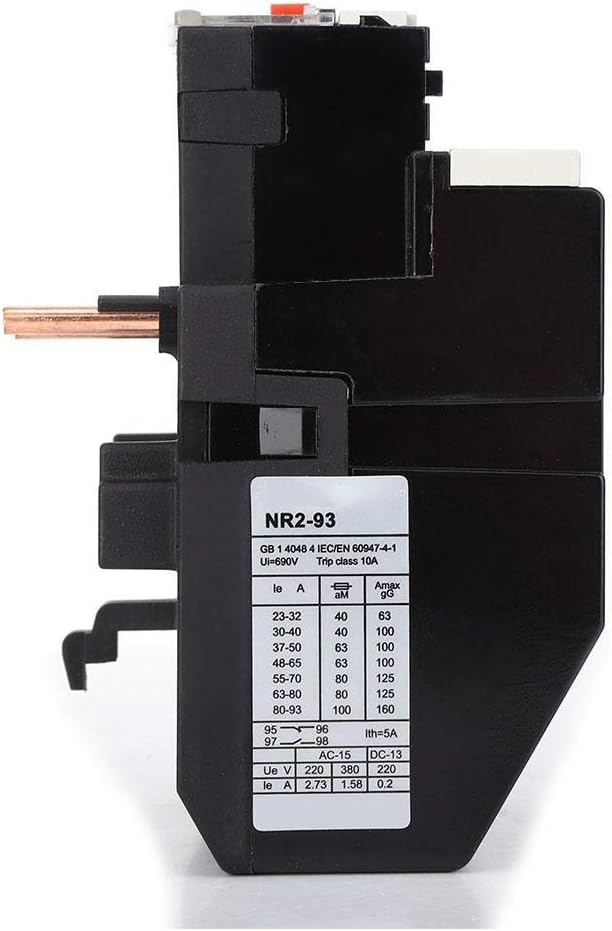

AC-15 220V Rated Current A 2.73
AC-15 380V Rated Current A 1.58
DC-13 220V Rated Current A 0.2
Traverse Sectional Area: Main Loop4-35, Auxiliary Loop 0.5-2.5
Tripping Level:10A
Fuse Specification: 40aM 63gG
Weight: Approx. 468g

Package List:
1 × Thermal Overload Relay
