DC Motor Controller, Yeeco DC 10-60V 12V 24V 36V 48V 60V DC Motor Speed Controller, PWM Stepless Brushed Motor Control, Variable Speed Control Generator Kit with Control Switch in Kuwait DC Motor Controller, Yeeco DC 10-60V 12V 24V 36V 48V 60V DC Motor Speed Controller, PWM Stepless Brushed Motor Control, Variable Speed Control Generator Kit with Control Switch in Kuwait DC Motor Controller, Yeeco DC 10-60V 12V 24V 36V 48V 60V DC Motor Speed Controller, PWM Stepless Brushed Motor Control, Variable Speed Control Generator Kit with Control Switch in Kuwait DC Motor Controller, Yeeco DC 10-60V 12V 24V 36V 48V 60V DC Motor Speed Controller, PWM Stepless Brushed Motor Control, Variable Speed Control Generator Kit with Control Switch in Kuwait DC Motor Controller, Yeeco DC 10-60V 12V 24V 36V 48V 60V DC Motor Speed Controller, PWM Stepless Brushed Motor Control, Variable Speed Control Generator Kit with Control Switch in Kuwait

DC Motor Controller, Yeeco DC 10-60V 12V 24V 36V 48V 60V DC Motor Speed Controller, PWM Stepless Brushed Motor Control, Variable Speed Control Generator Kit with Control Switch

KWD 7.500
Brand
Yeeco
Weight
124 g
– 1 +

Special Features

  • WIDELY OPERATING RANGE:Input:DC 10-60V,max drive current is 6A,Maximum wattage is 300W,PWM pulse width adjustable range: 10%-100%
  • ADJUSTABLE KNOB:DC brush motor speed driver is designed with a voltage adjustment knob, very convenient for voltage control., DC output stepless adjustable.
  • WIRING TERMINALS DESIGN: The wiring terminals adopts fence type design and is with safety cover, and there is wiring marks on each terminal, please follow the marks when you are wiring.
  • SPECIFICATION:Small Size:0.4×3.9×2.4inch, DC motor speed controller has high precision, wide speed controlling range, low power consumption and long service life
  • OCCASION:Pwm dc motor speed controller widely used for speed governing device drivers of packaging, printing, electronics, instrument meter, clothing machinery, medical machinery and other industries

Description

Specifications:
Input Voltage Range: DC 10-60V (CANNOT BE USED IN AC)
Output Voltage Range: DC 12V 24V 36V 48V
Max Current Range: 6A
Maximum Wattage: 300W

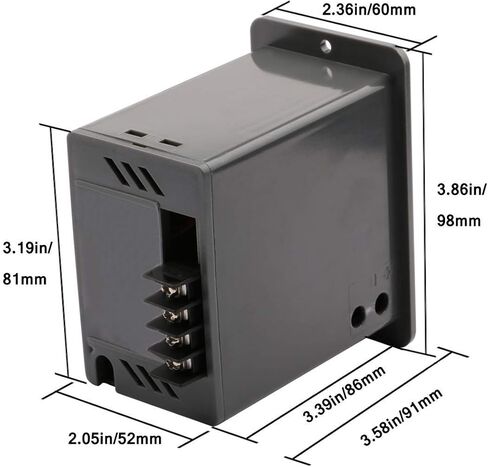

Size：0.4×3.9×2.4inch
Weight:124G
PWM duty cycle: 10% -100%
Polarity of motor: No need to distinguish the positive side and the negative side when you connect the motor and you can adjust the order of the wires to change the direction.
Note: You should use the controller by increasing the speed gradually, otherwise the fuse would be damaged
This motor speed controller comes with an instruction
