Specifications:
Input Voltage: 6V~12V DC

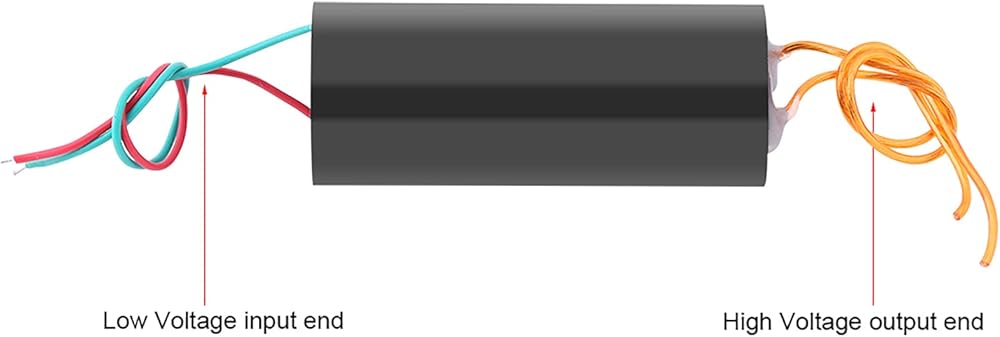

Input Current: 2A~5A (related to voltage)Output Voltage: About 500KV~1000KV Input Cable Length: About 100mm(red is positive)

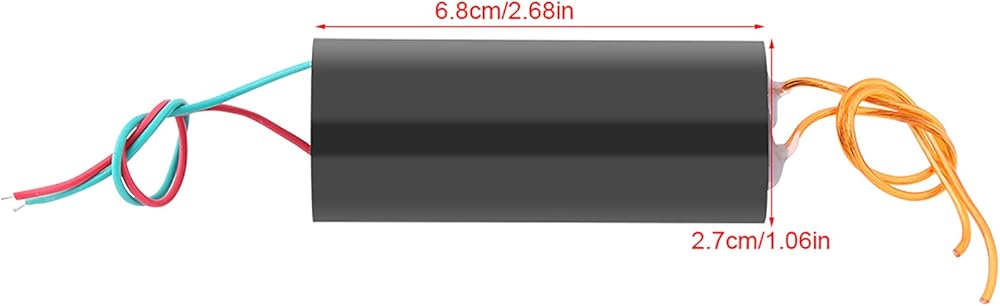

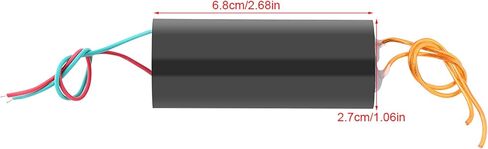

Output Cable Length: About 100mm

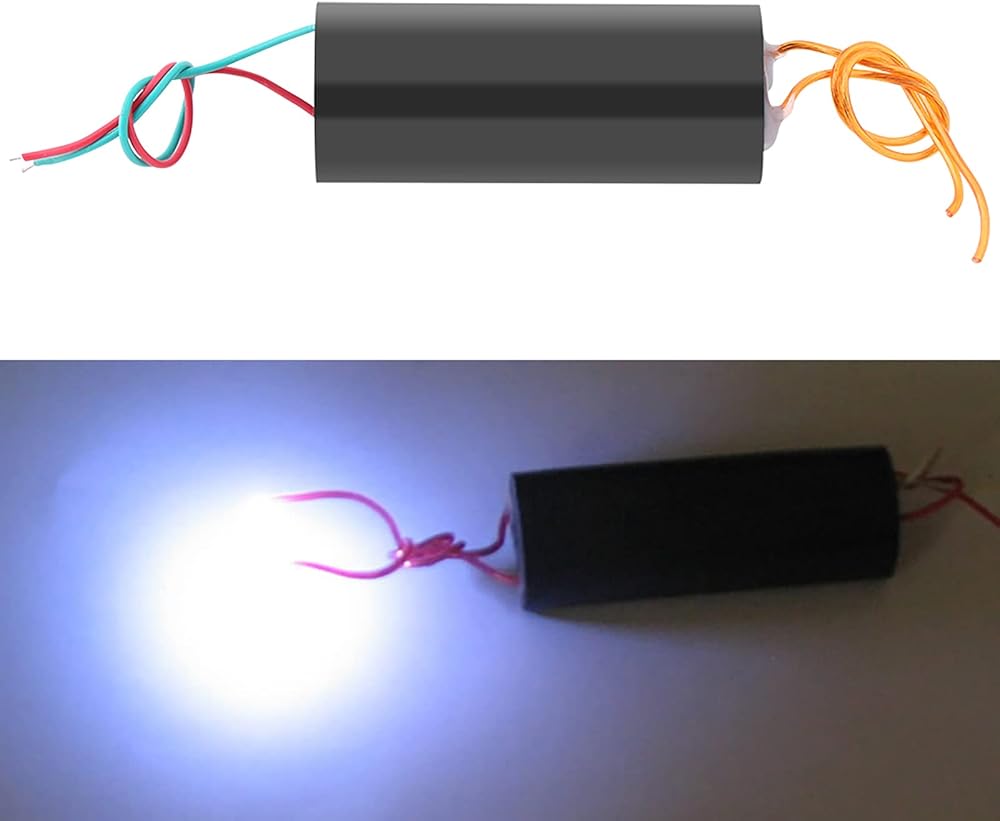

Arc Discharge Distance: 10mm~20mm

Instruction:1. You can use two 3.7V lithium batteries in series, such as 18650 batteries, idle mobile phone batteries (remove the protection board, the recommended capacity is more than 2000mAh) or nickel-cadmium/nickel-metal hydride battery packs, 4V or 6V batteries.
2. This module is a finished module of high-voltage inverter transformer/booster for scientific small production. After inputting DC6-12V voltage at the input end, a DC high voltage of about 500,000 volts (about 1-2 cm arc) can be obtained at the output end. ), can be used as a high-voltage source for general experiments, electronic instruments, negative ion generators, and small scientific productions in Chinese subjects.
3. The way to judge whether the battery capacity can drive the maximum output power is to measure the battery voltage during arcing. The maximum power can be output if it is around 6V. Two small-capacity lithium batteries are connected in series to 7.2V, and the measured voltage has dropped to about 4V in the arcing state. The smaller the capacity, the lower the voltage will be. Therefore, it is recommended to use a lithium battery above 2000mA, and it is best to match a battery above 4000mA if possible.

Note:
1, Output ends of cable should be adjusted properly before power on, and the arc distance depends on battery voltage and capacity.
2, The arc distance should be from short to long, do not produce a longest arc at first or the module might be damaged easily.

Package Includes:

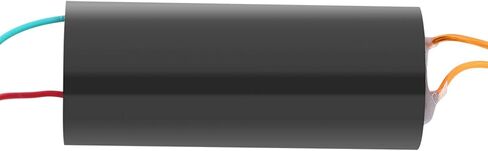

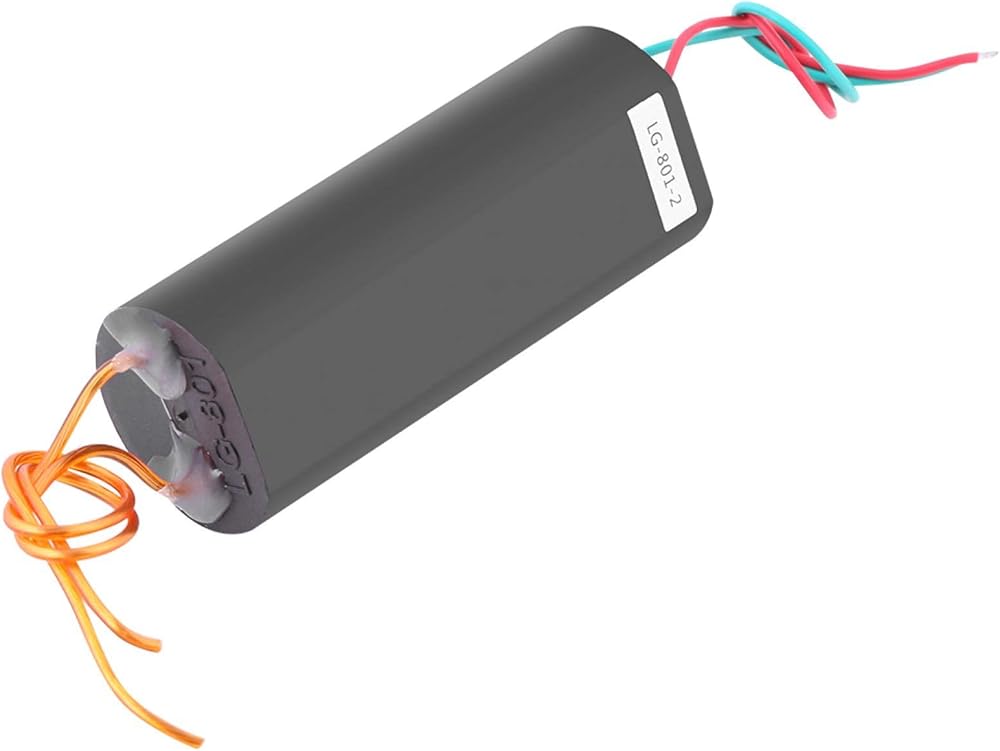

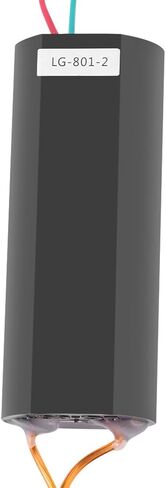

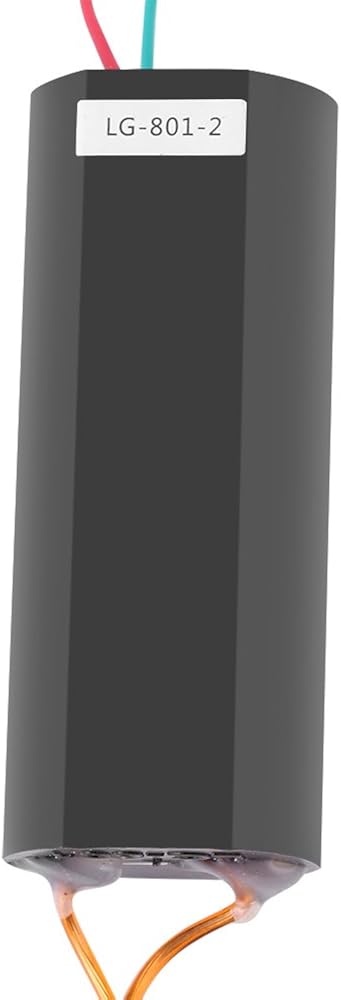

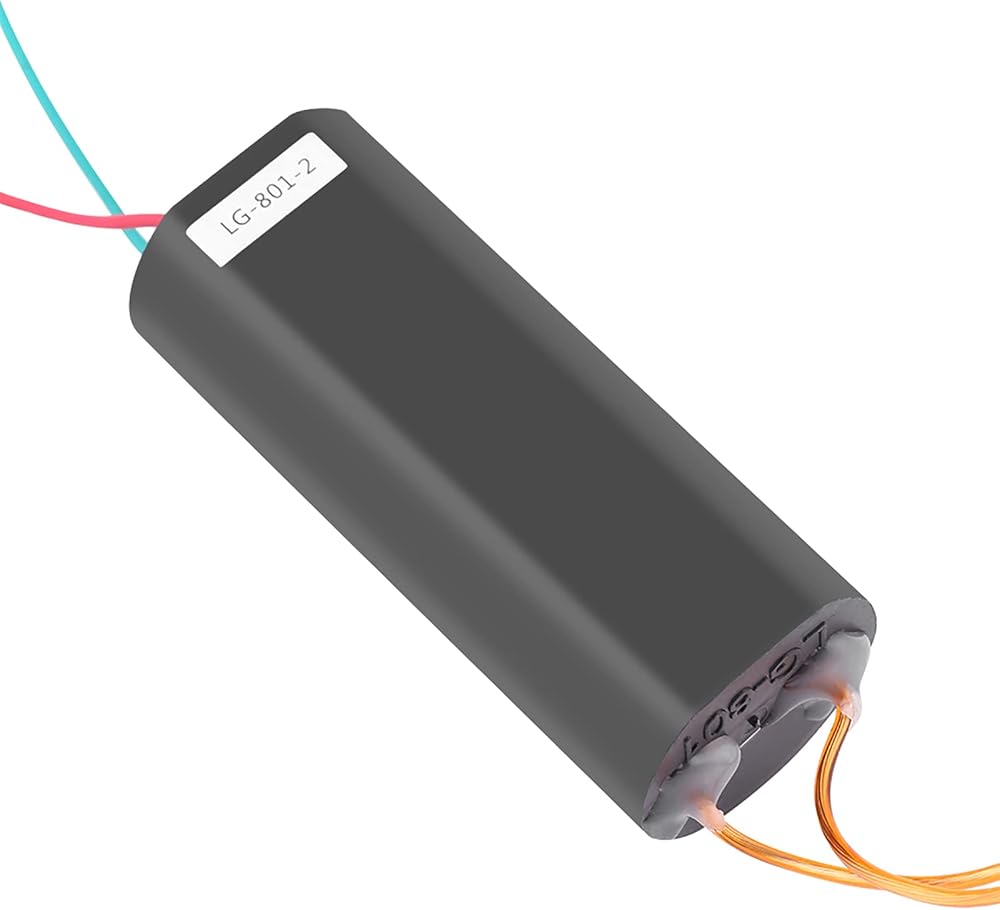

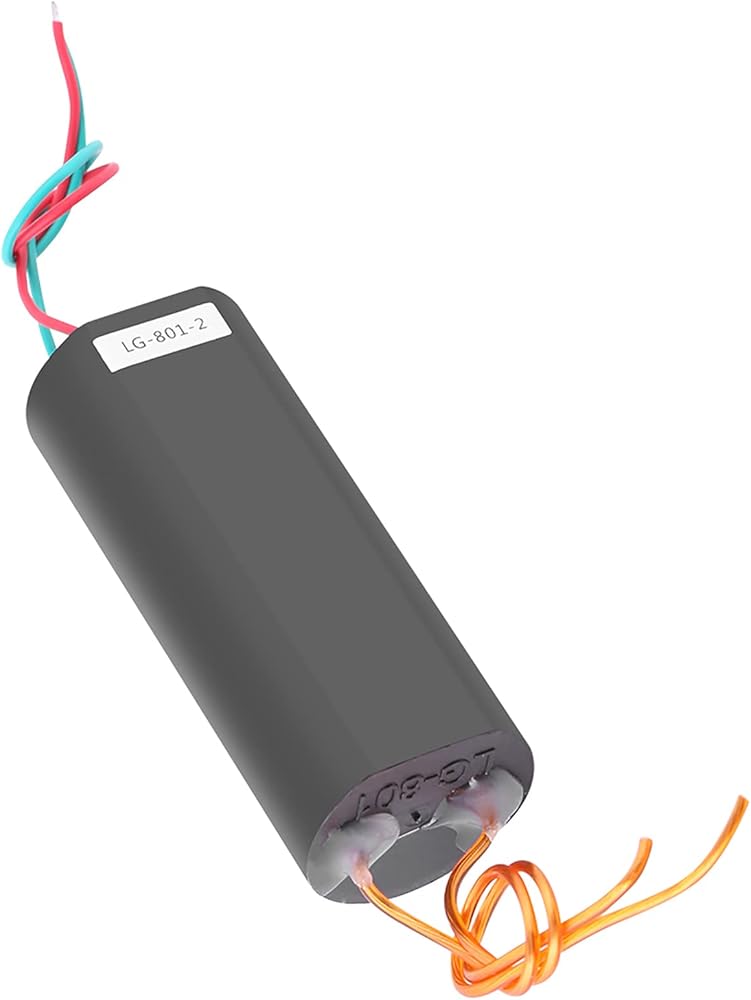

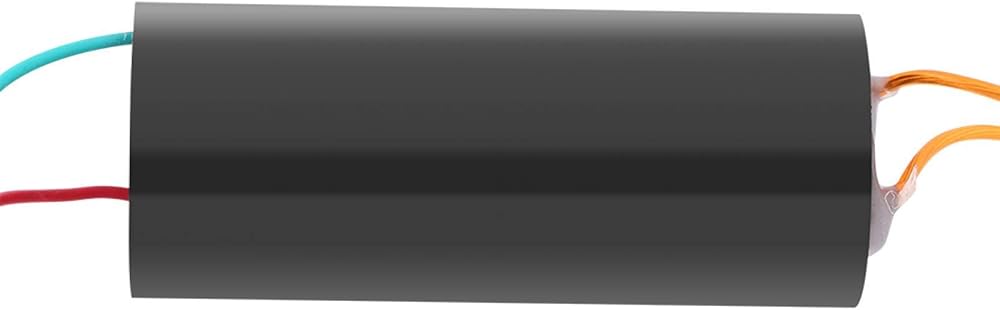

1 x High Voltage Generator
