Minimum operating voltage 8V, corresponding minimum operating current is 100mA; Standard operating voltage 12V, corresponding standard operating current is 150mA.

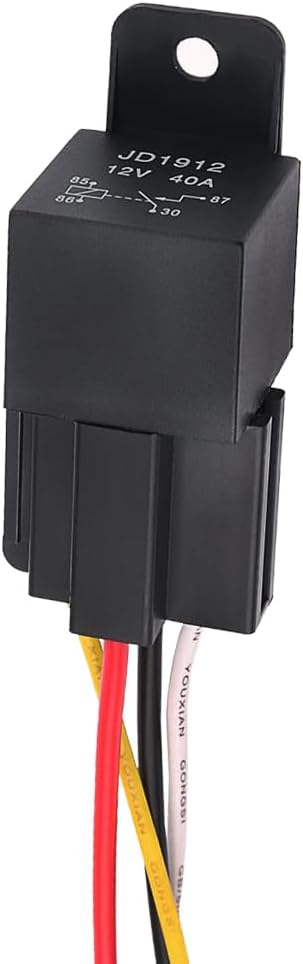

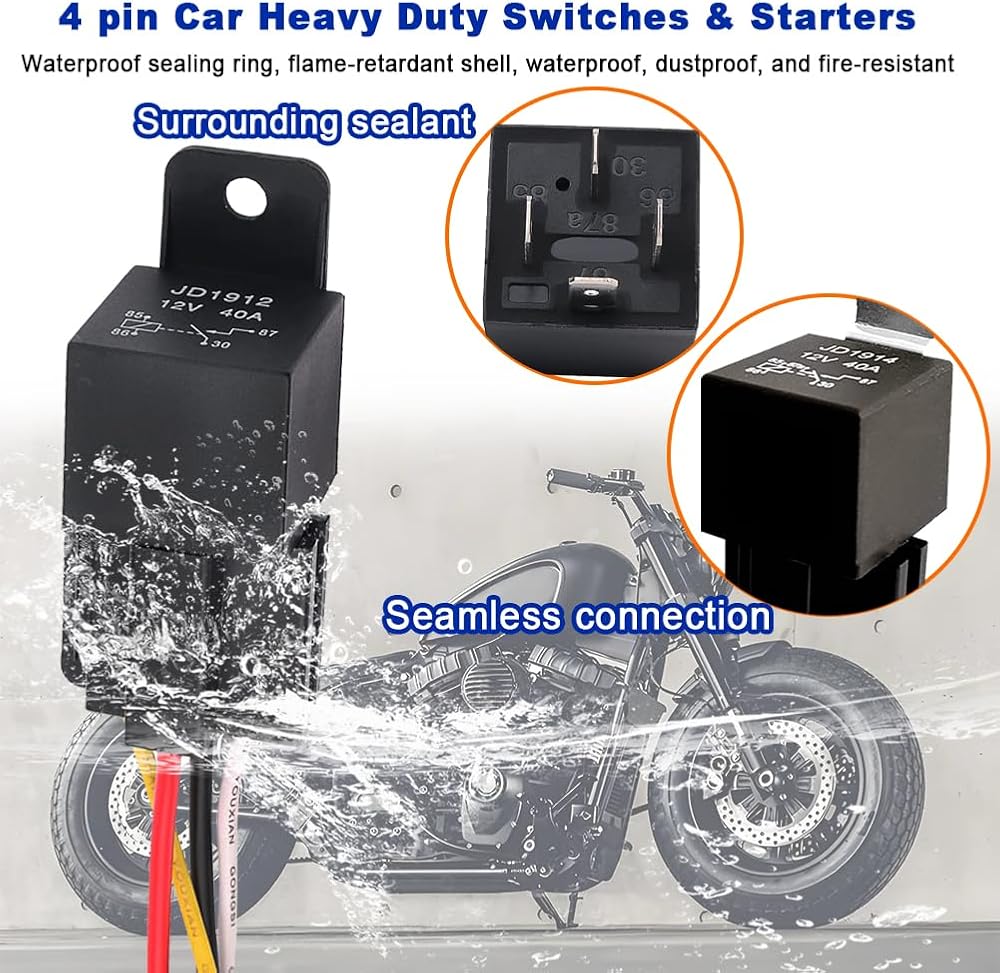

12v 5pin 40A Brand new heavy duty SPDT(Single Pole Double Throw) relays with color-labeled wires
Small size/Low power consumption/High contact voltage/ High sensitivity
Contact Material: Ag Alloy / Contact Resistance: ≤ 100MΩ
Life Expectancy Electrical: 100,000 Operation, Life Expectancy Mechanical: 10,000,000 Operation.
85 and 86 are the relay coil ends, 30 and 87 are the normally open contact terminals of the relay, when 85 and 86 connect the power, 30 and 87 will be connected.30 and 87a are the normally closed contact terminals of the relay,when 85 and 86 connect the power, 30 and 87 will be disconnected. When the positive is connected to the power, the light will be on; when the positive is not connected to the power, the indicator light will be off.
