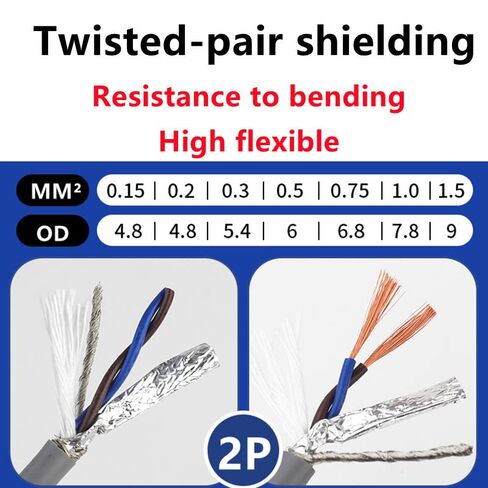

2 cores 26/24/22/20/18/17/15 AWG high flexible drag chain cable Oil resistance/folding resistance/temperature resistance -30-+105 robot arm /CNC cable

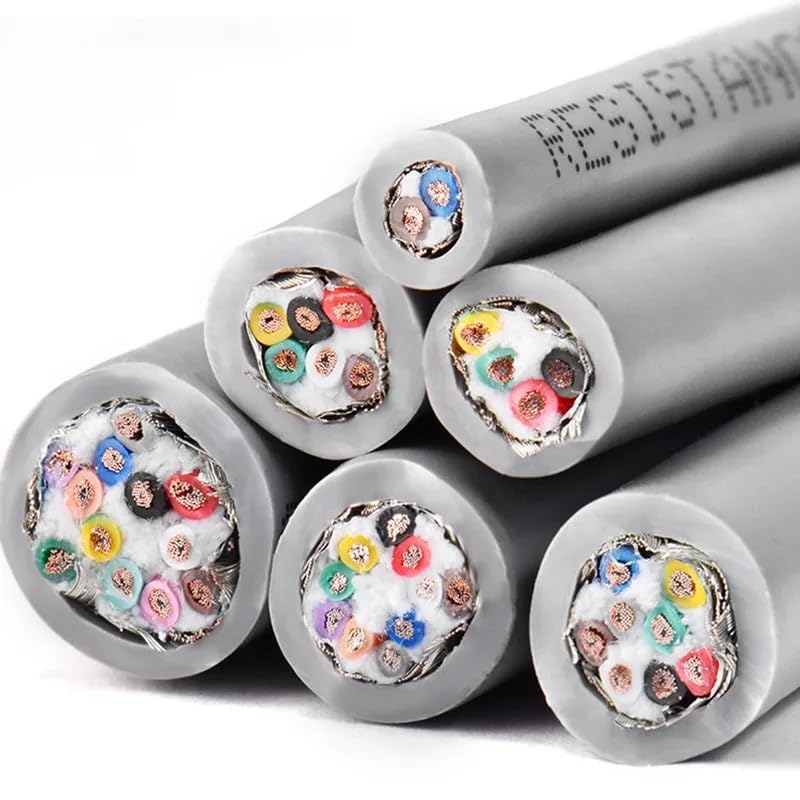

1.2-12 cores are colored cores, and the colors are distinguished. 14-40 cores are coded in white, distinguished by the numbers on the cores.
2.26 24 22 AWG is tinned copper core, 20 AWG and above is pure copper.

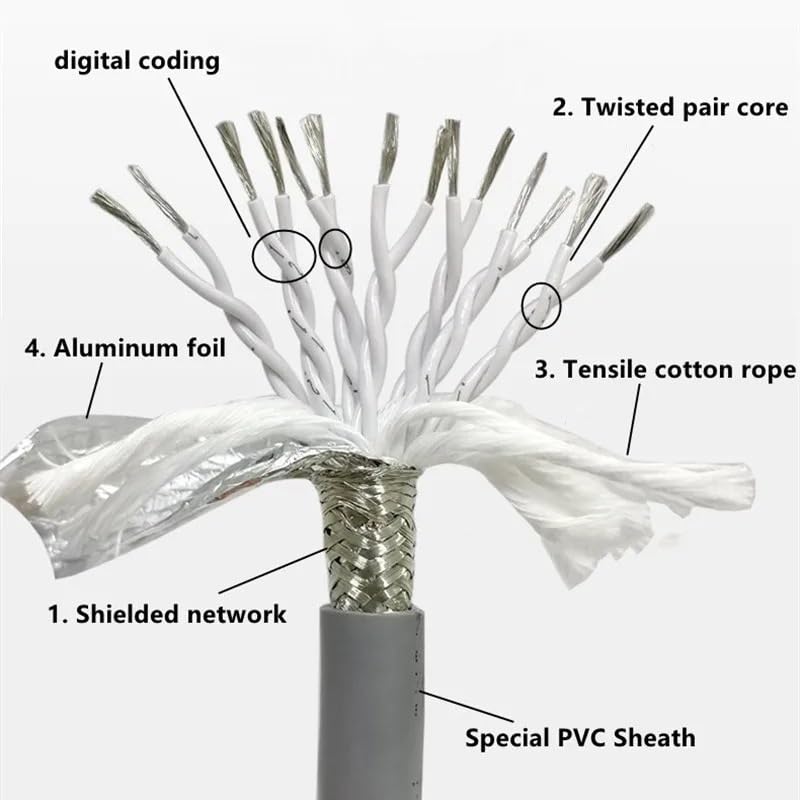

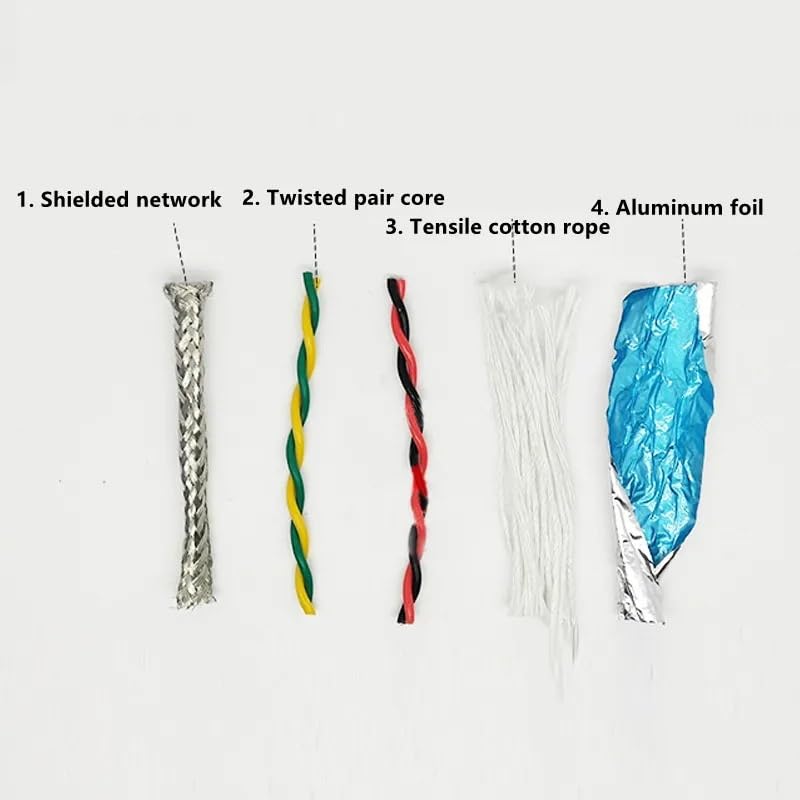

Structural Analysis
1. Shielded network
2. Twisted pair core
3. Tensile cotton rope
4. Aluminum foil
5. Digital coding

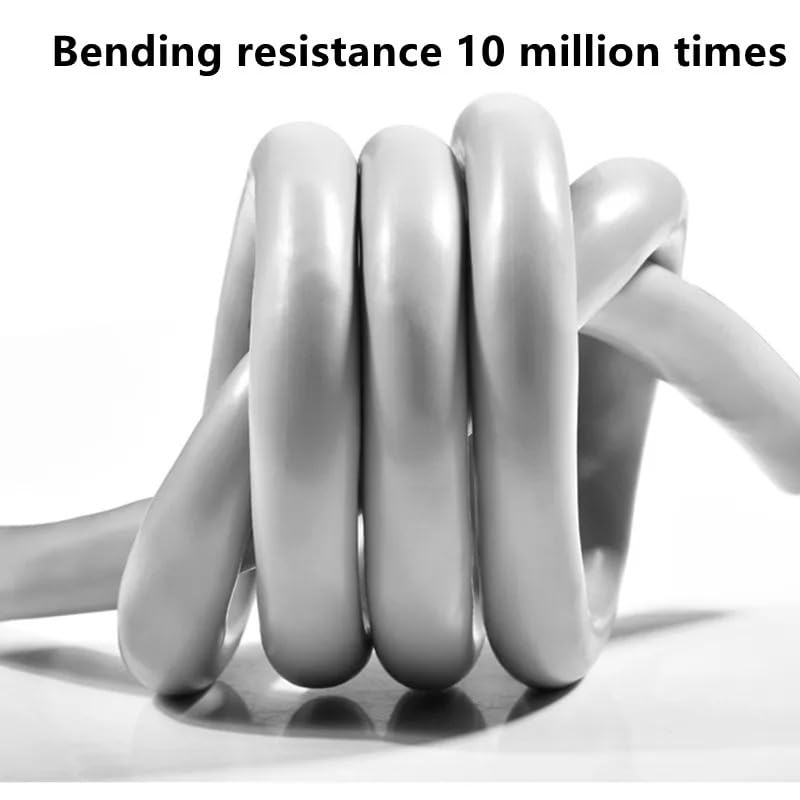

Bending resistance 10 million times

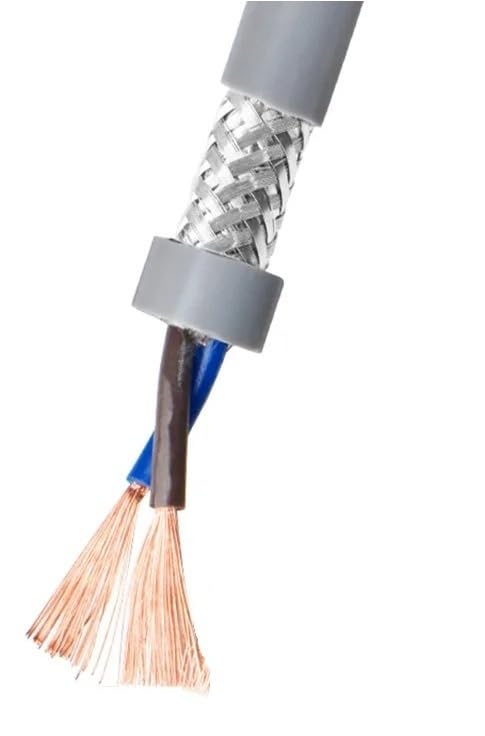

The cable is a drag chain twisted pair shielded wire, which has the functions of oil resistance, bending resistance of 10 million times, and temperature resistance of -30-105.

Model Number : TRVVPS
Type : Insulated
Conductor Type : Stranded
Conductor Material : Copper
Insulation Material : PVC
Origin : Mainland China
Feature 1 : Resistance to bending
Feature 2 : Oil resistant
Feature 4 : Hardy
Feature 5 : Tank chain cable
Temperature resistance : -30-105
